SLOT A B C D
1 G921 – PDP-8/L control panel, Schematics

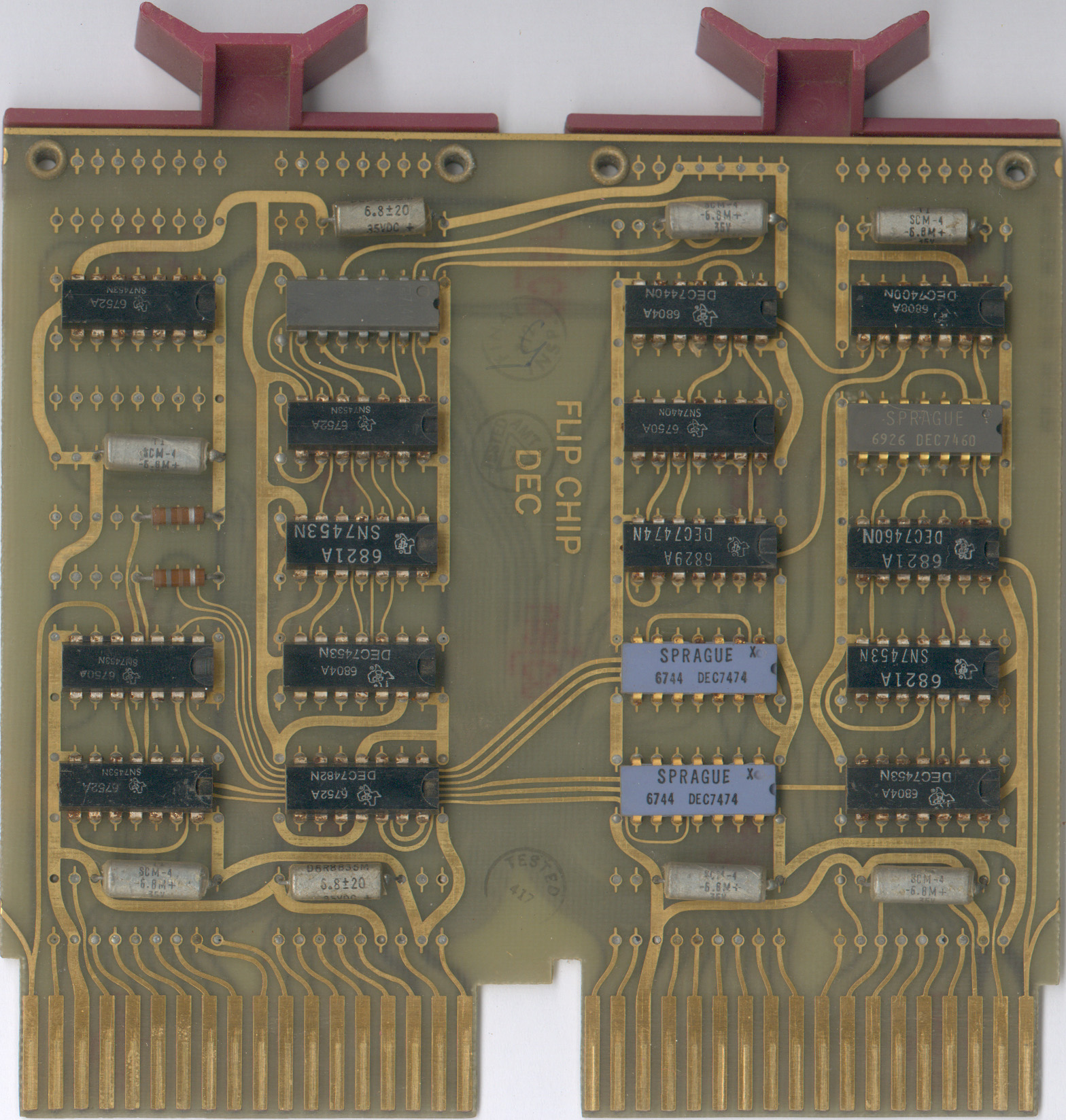

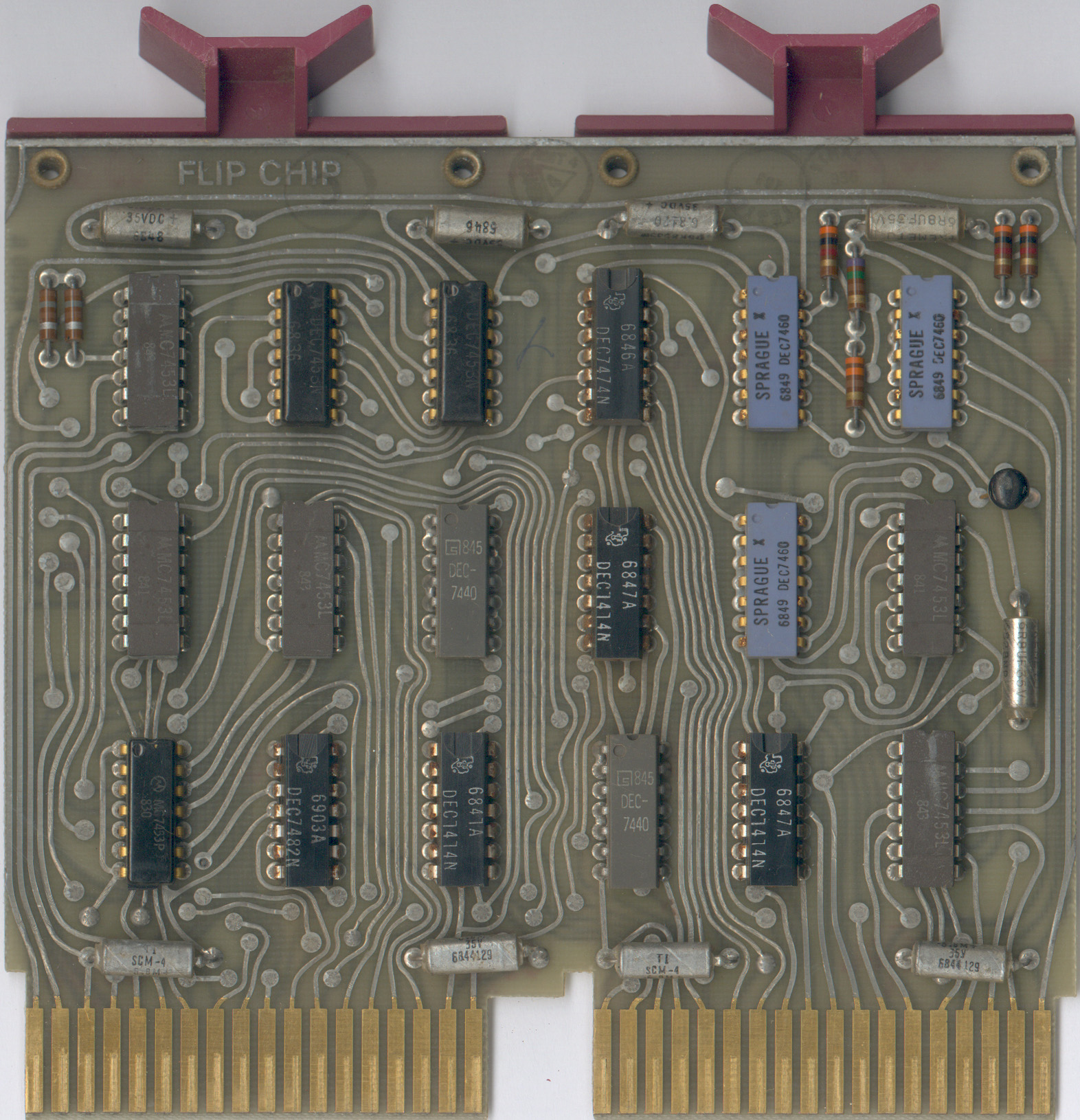

2 M220 Rev. A Rev. B
Component Rev. A Rev. B

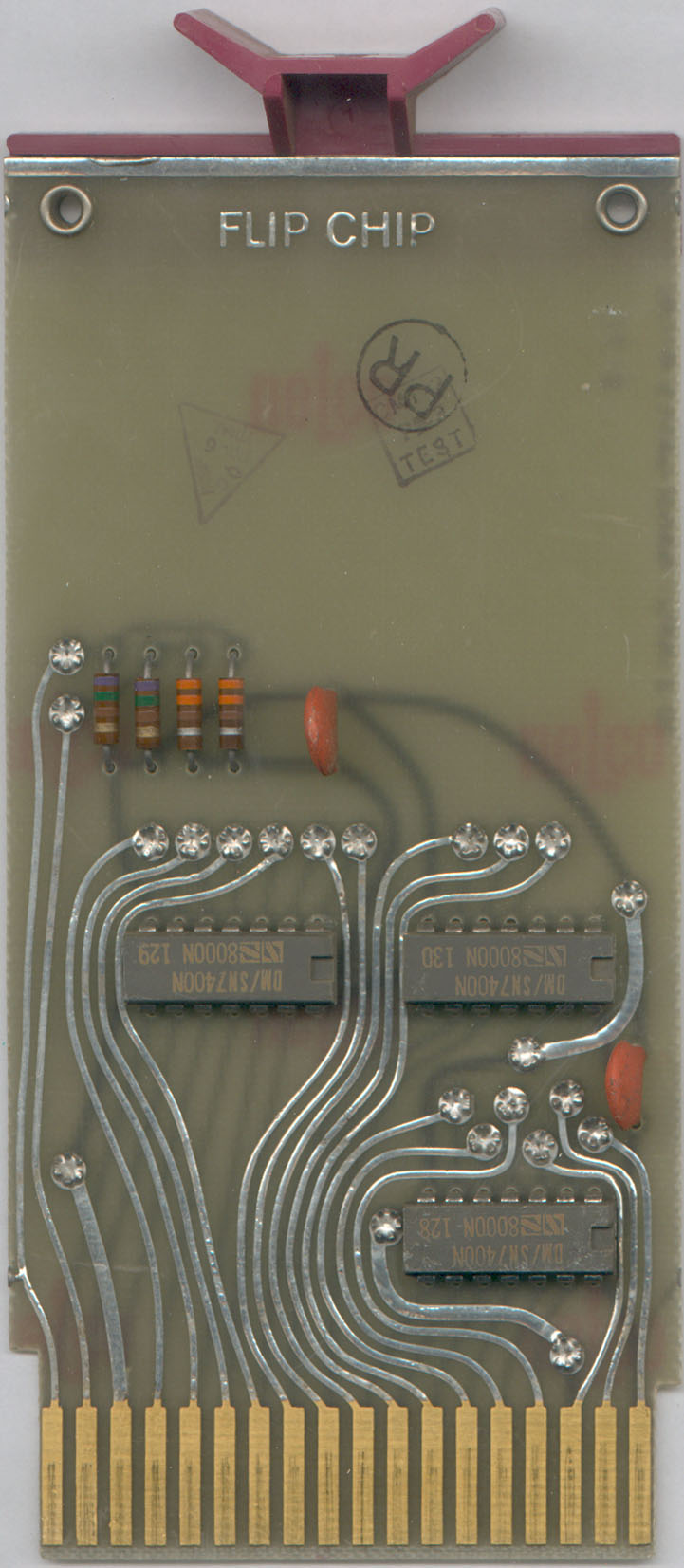

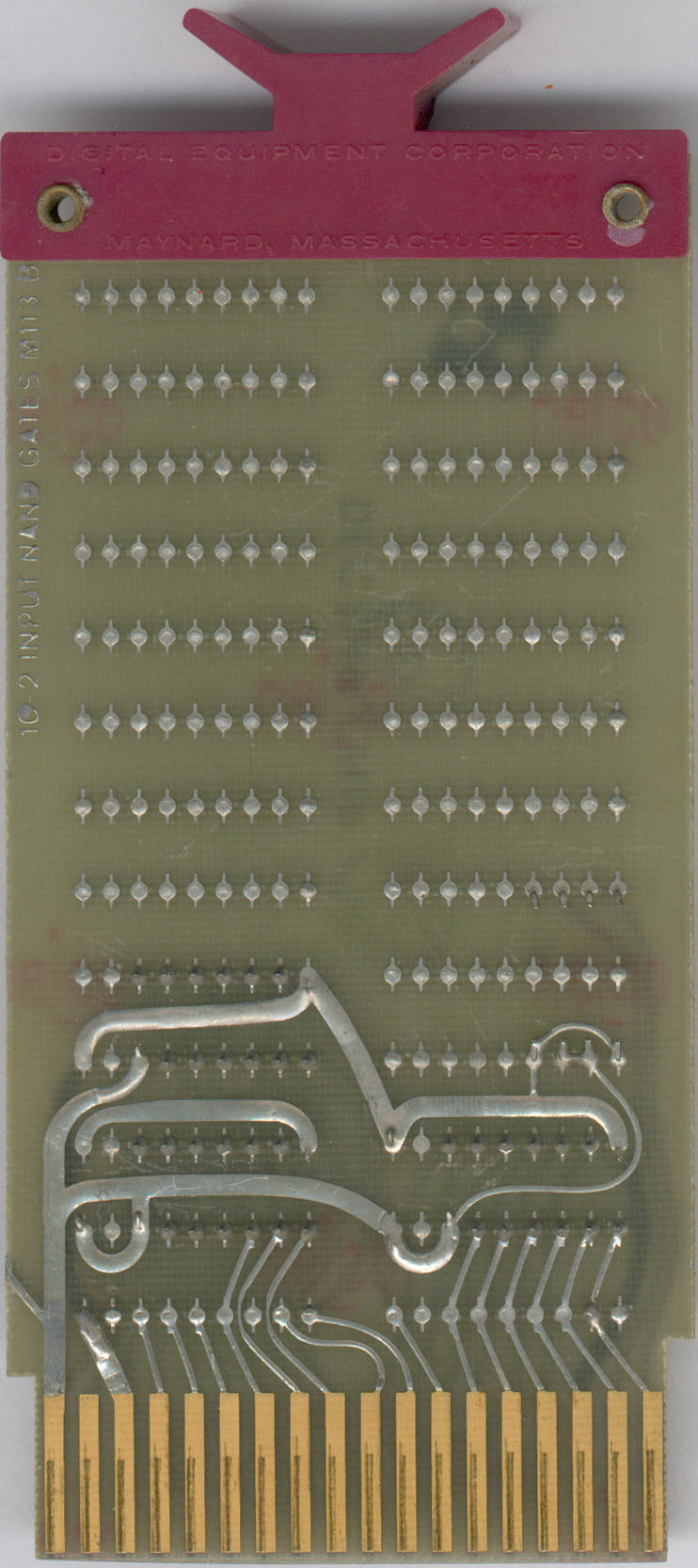

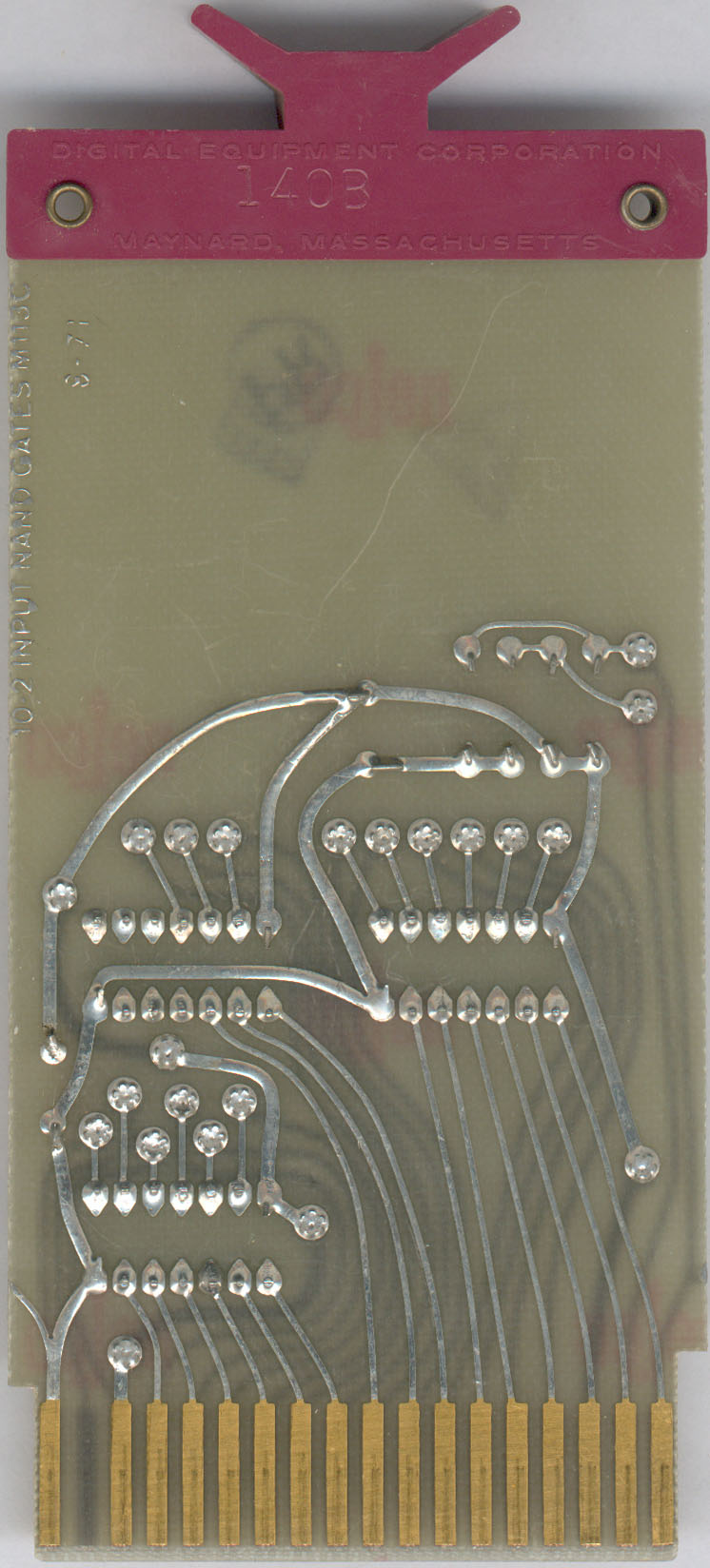

Solder Rev. A Rev. B 		M113 Rev. D
Component Rev. B Rev. C
Solder Rev. B Rev. C 		M111 Rev. A Rev. C
Component Rev. A
Solder Rev. A
3 M220 Rev. A Rev. B
Component Rev. A Rev. B

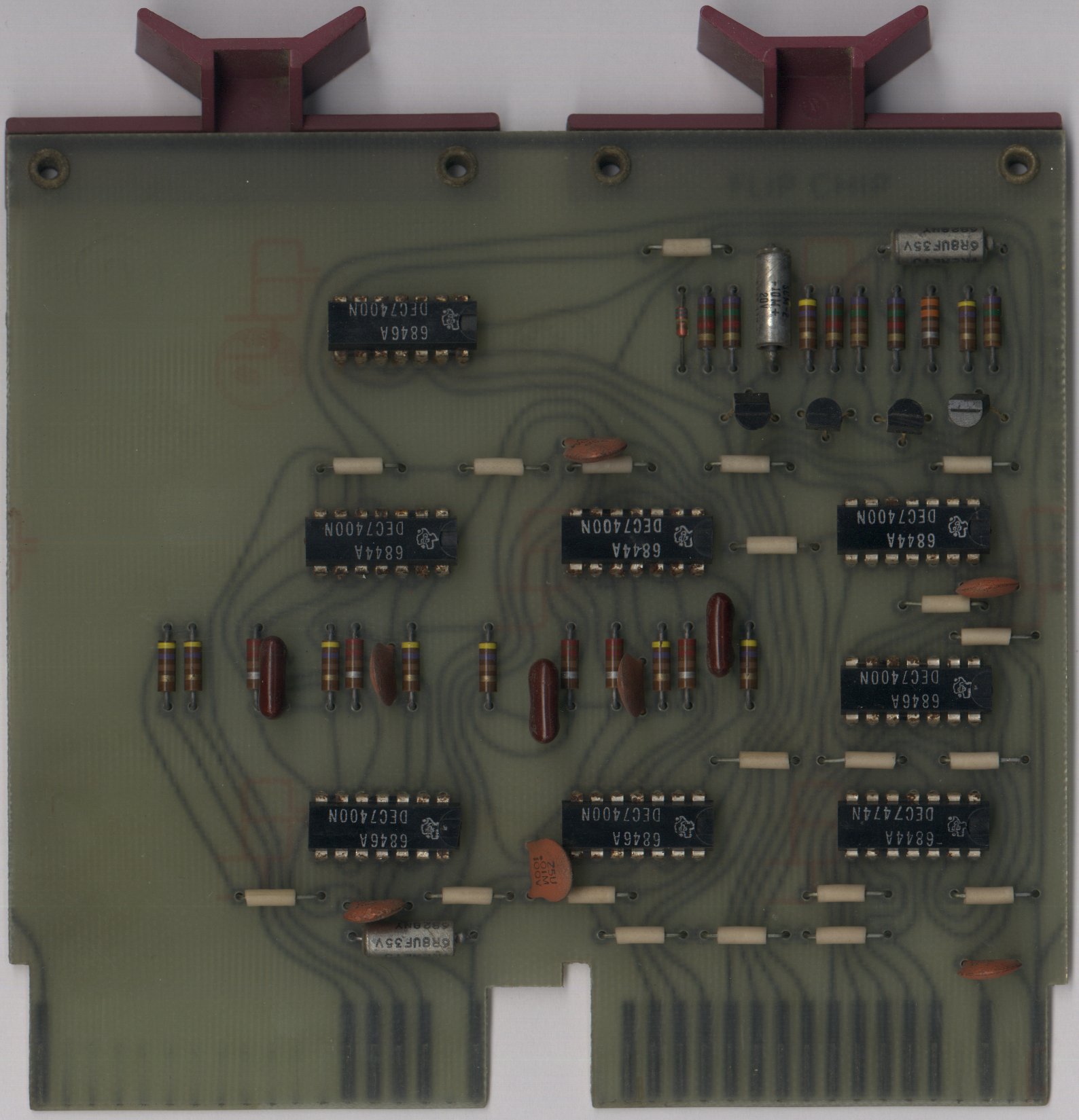

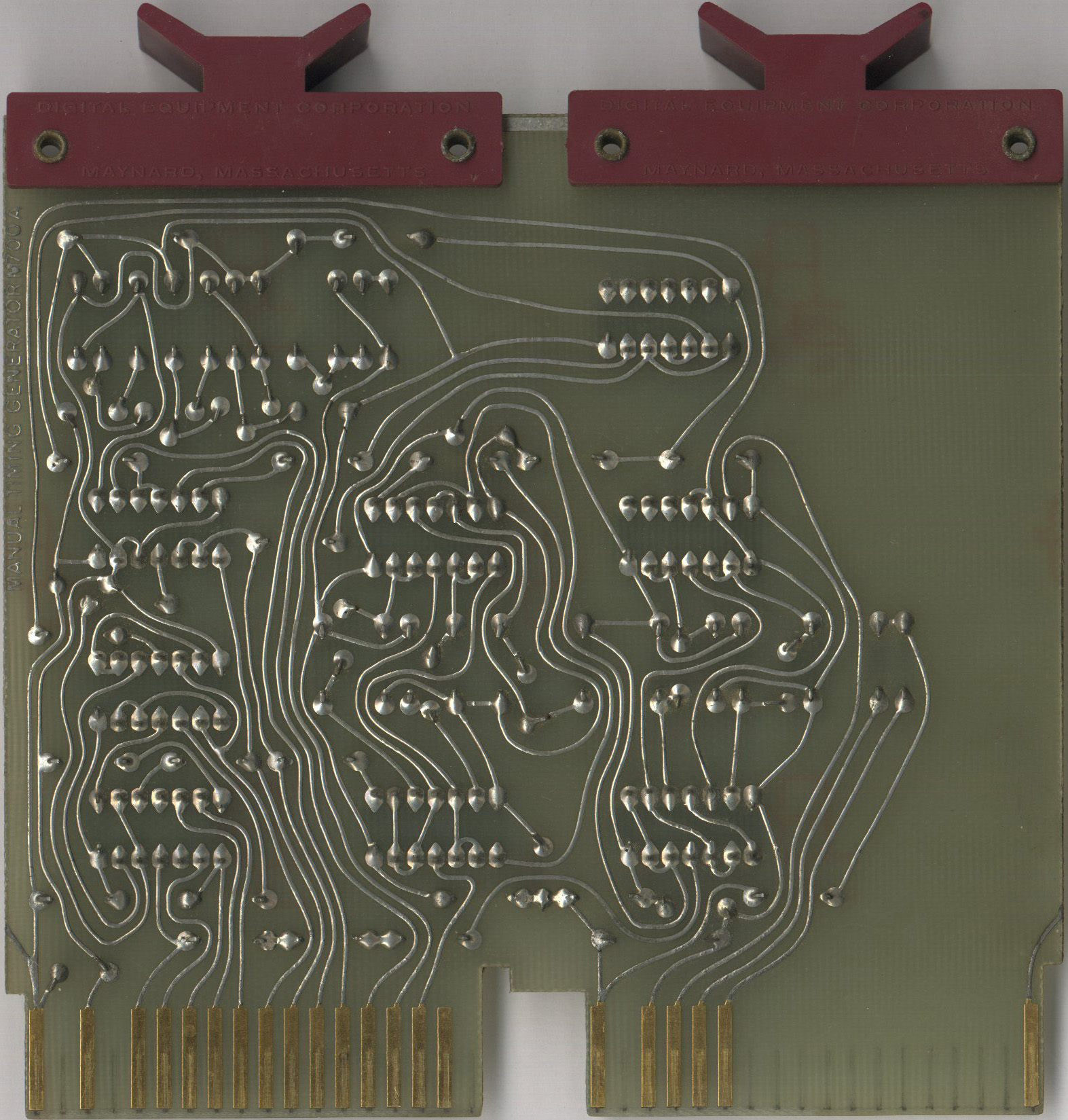

Solder Rev. A Rev. B 		M700 Rev. D Rev. E
Component Rev. A
Solder Rev. A
4 M220 Rev. A Rev. B
Component Rev. A Rev. B

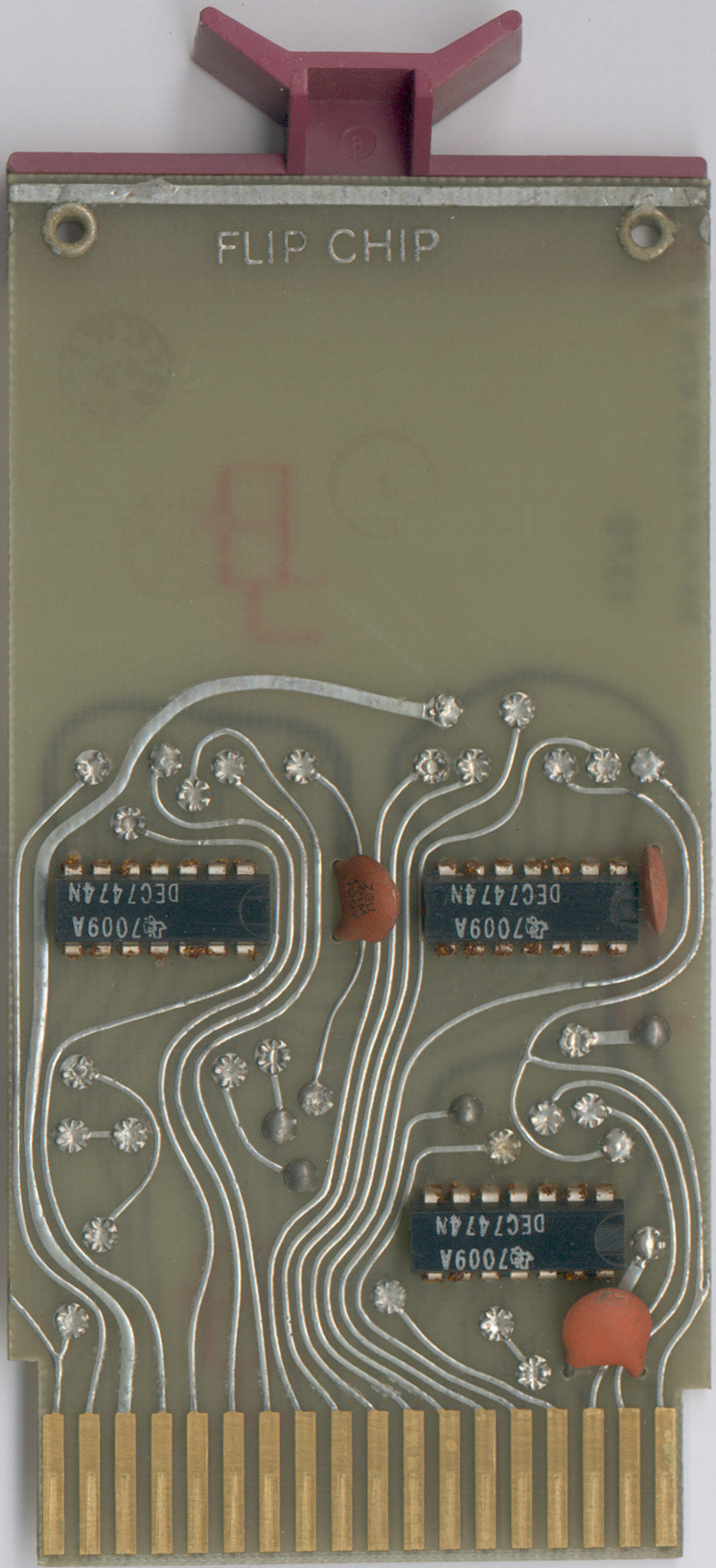

Solder Rev. A Rev. B 		M216 Rev. B Rev. C
Component Rev. B
Solder Rev. B 		M115 Rev. D
Component Rev. C
Solder Rev. C
5 M220 Rev. A Rev. B
Component Rev. A Rev. B
Solder Rev. A Rev. B 		M113 Rev. D
Component Rev. B Rev. C

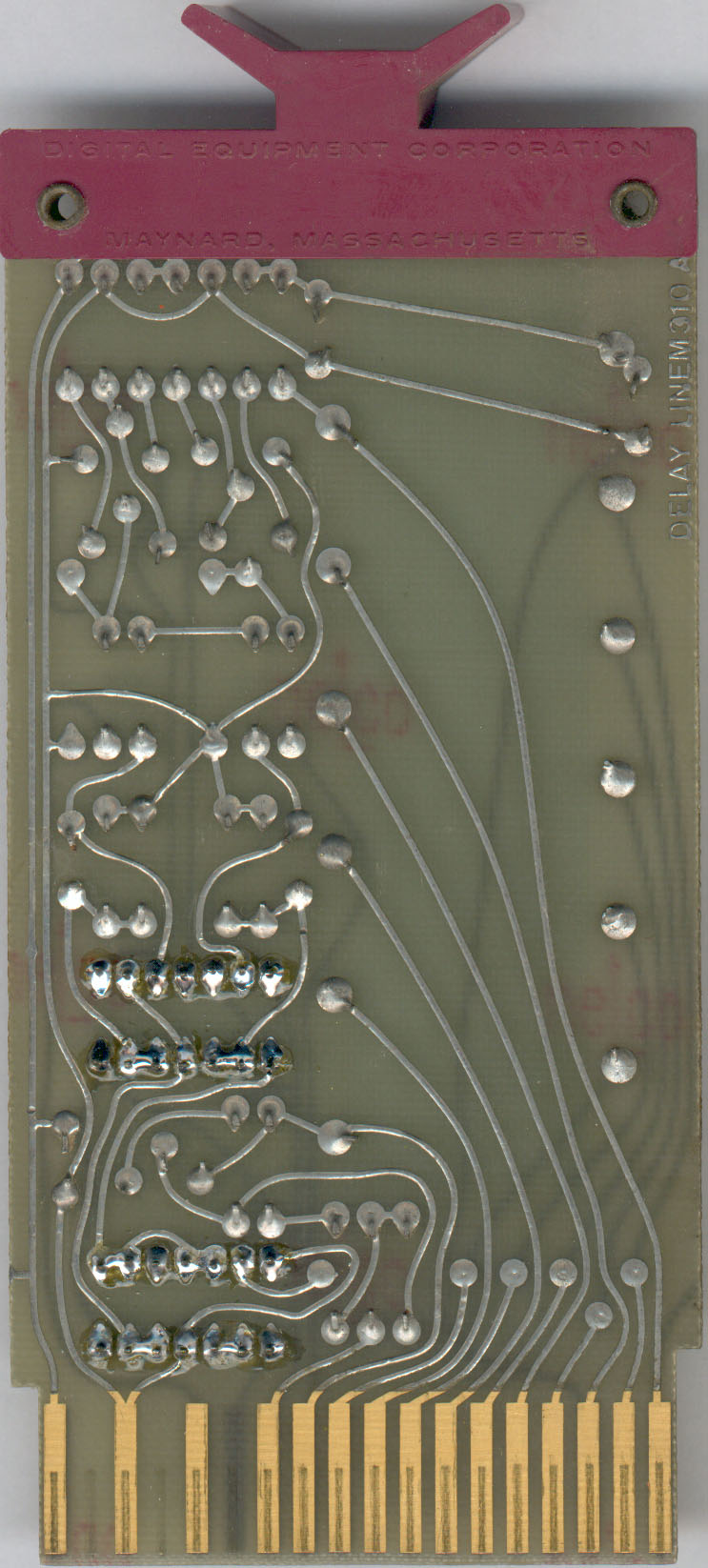

Solder Rev. B Rev. C 		M310 Rev. B Rev. C
Component Rev. A
Solder Rev. A
6 M220 Rev. A Rev. B
Component Rev. A Rev. B
Solder Rev. A Rev. B 		M216 Rev. B Rev. C
Component Rev. B
Solder Rev. B 		M310 Rev. B Rev. C
Component Rev. A
Solder Rev. A
7 M220 Rev. A Rev. B
Component Rev. A Rev. B
Solder Rev. A Rev. B 		M111 Rev. A Rev. C
Component Rev. A
Solder Rev. A 		M310 Rev. B Rev. C
Component Rev. A
Solder Rev. A

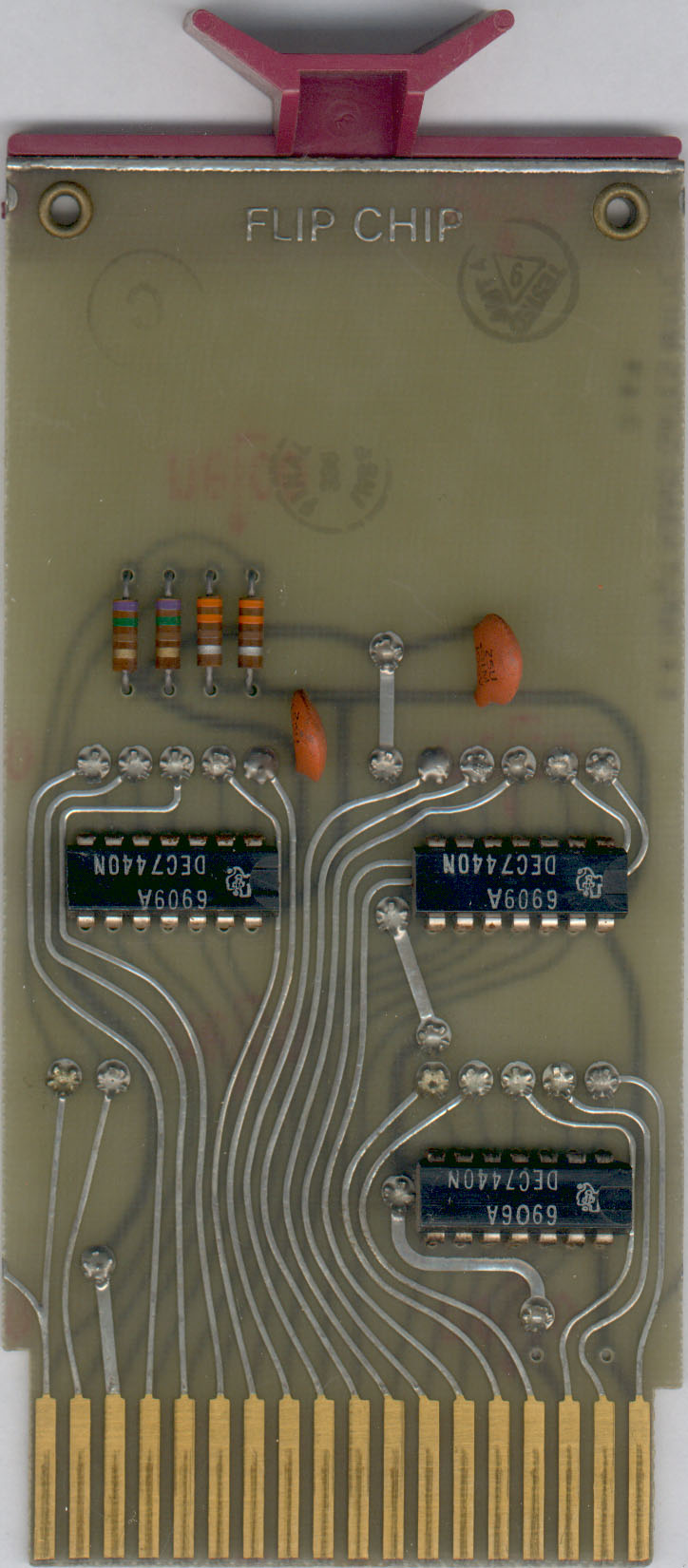

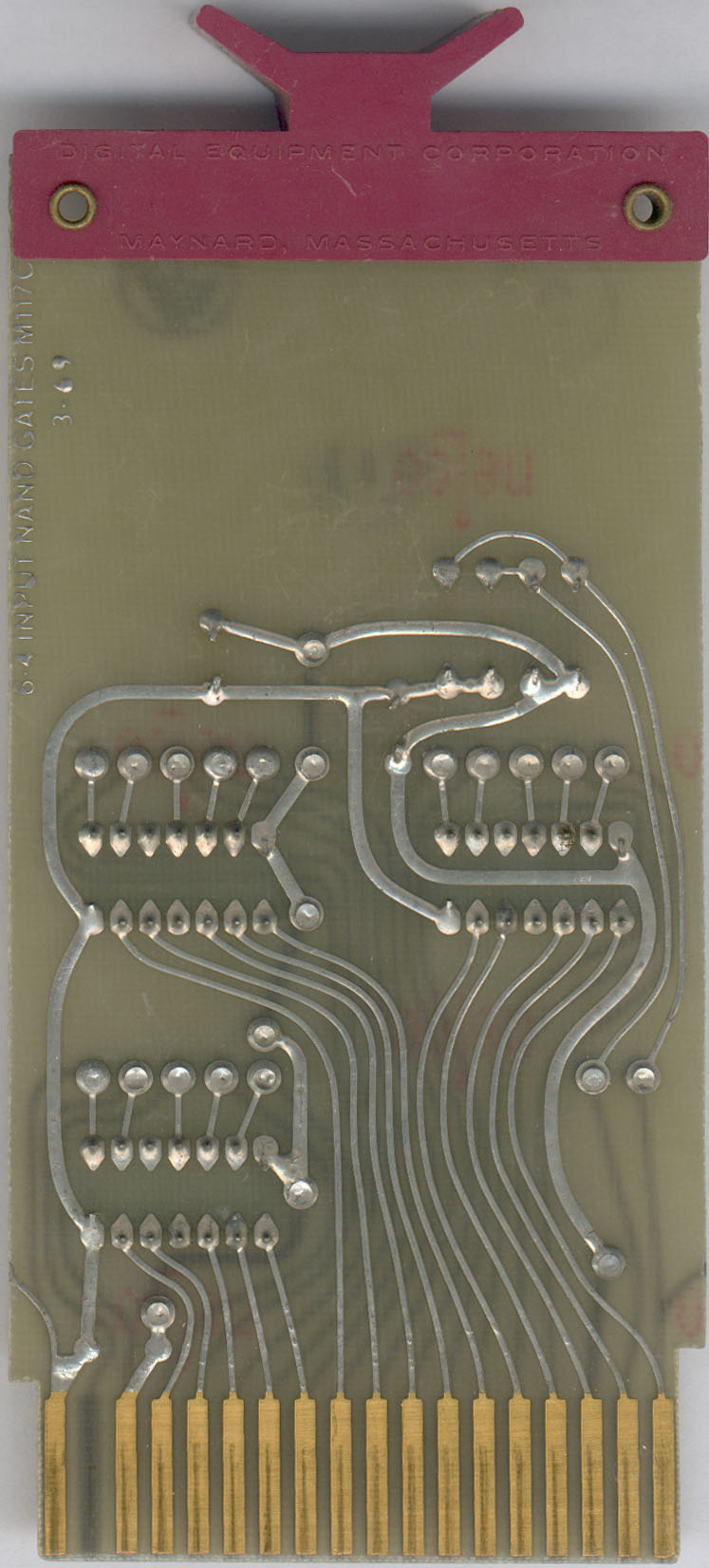

8 M617 Rev. A Rev. C
Component Rev. C
Solder Rev. C 		M617 Rev. A Rev. C
Component Rev. C
Solder Rev. C 		M216 Rev. B Rev. C
Component Rev. B
Solder Rev. B 		M310 Rev. B Rev. C
Component Rev. A
Solder Rev. A
9 M617 Rev. A Rev. C
Component Rev. C
Solder Rev. C 		M617 Rev. A Rev. C
Component Rev. C
Solder Rev. C 		M115 Rev. D
Component Rev. C
Solder Rev. C 		M160 Rev. D
Component Rev. C
Solder Rev. C

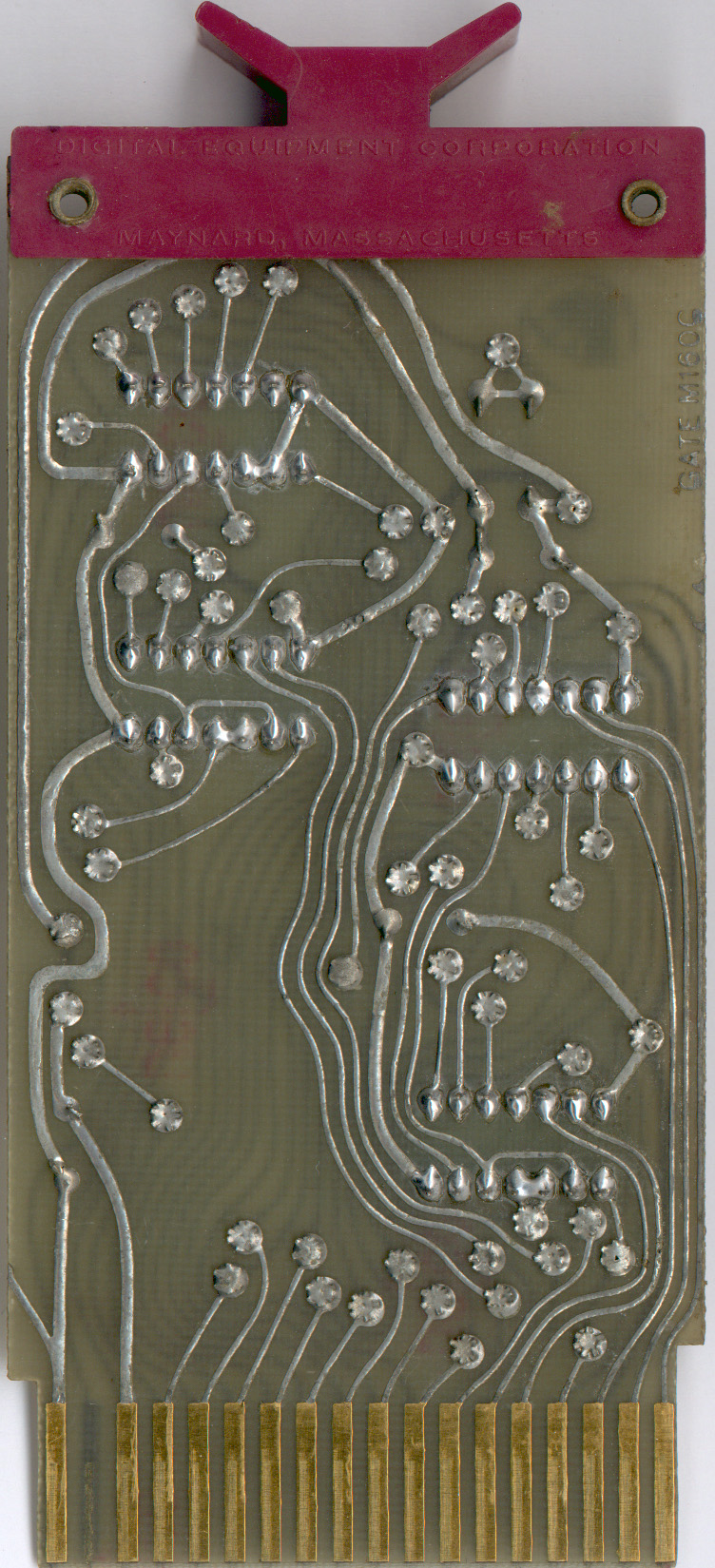

10 M160 Rev. D
Component Rev. C
Solder Rev. C 		M160 Rev. D
Component Rev. C

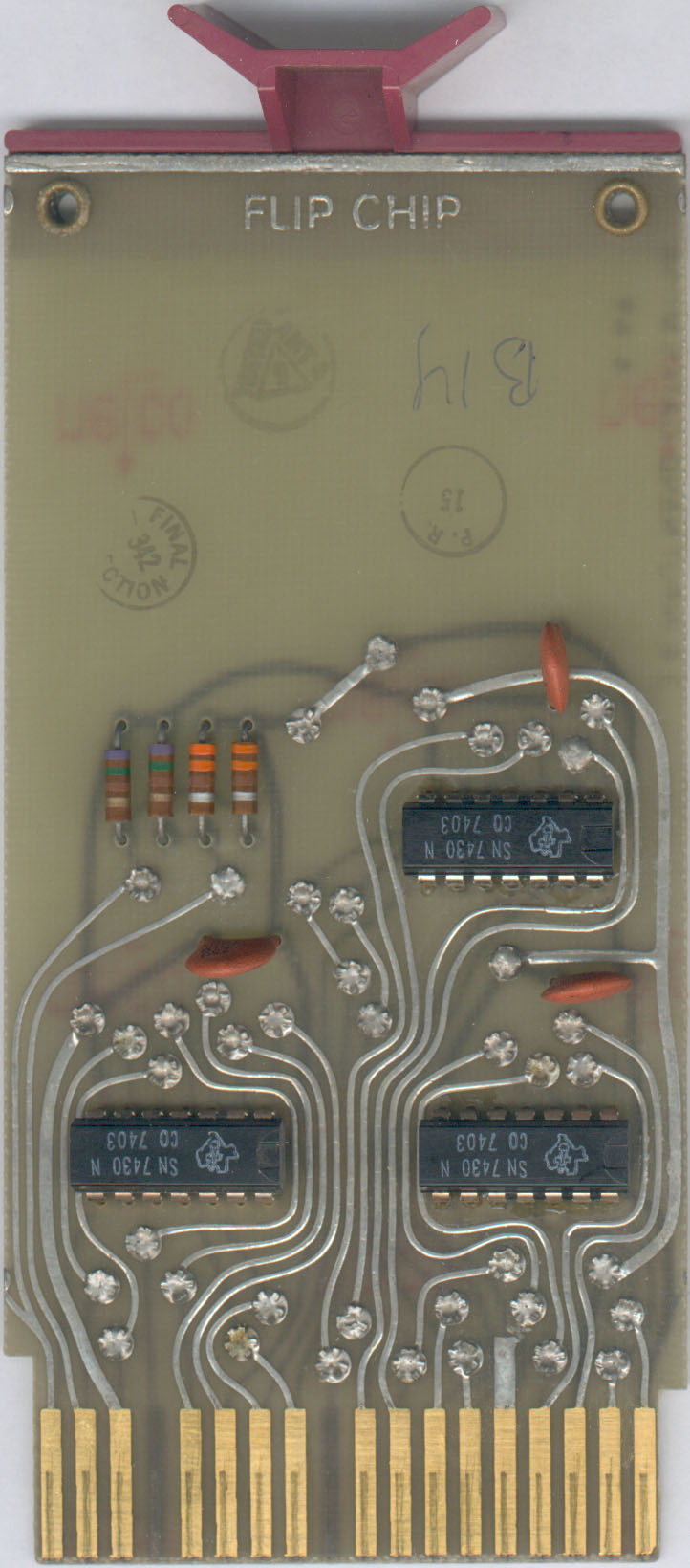

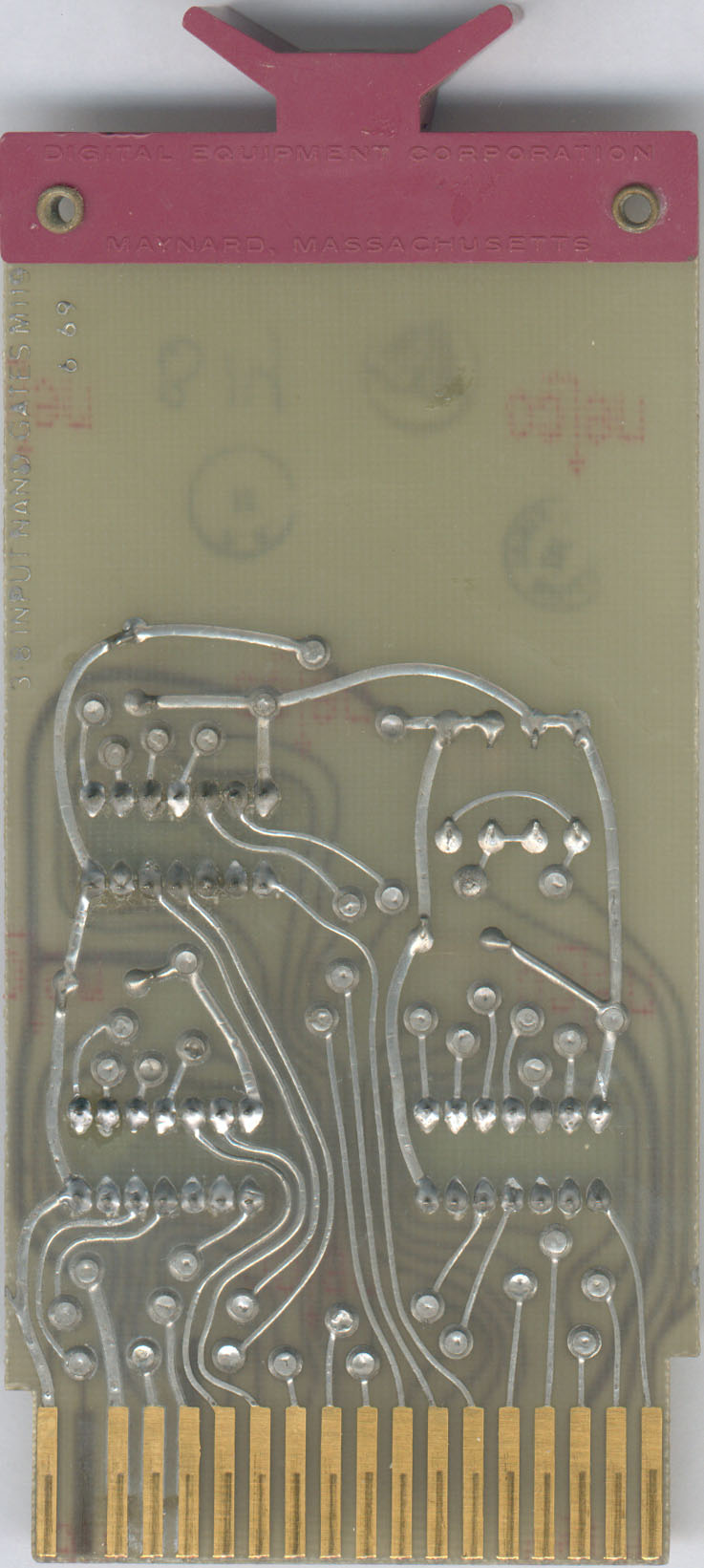

Solder Rev. C 		M119 Rev. C
Component Rev. X
Solder Rev. X 		-

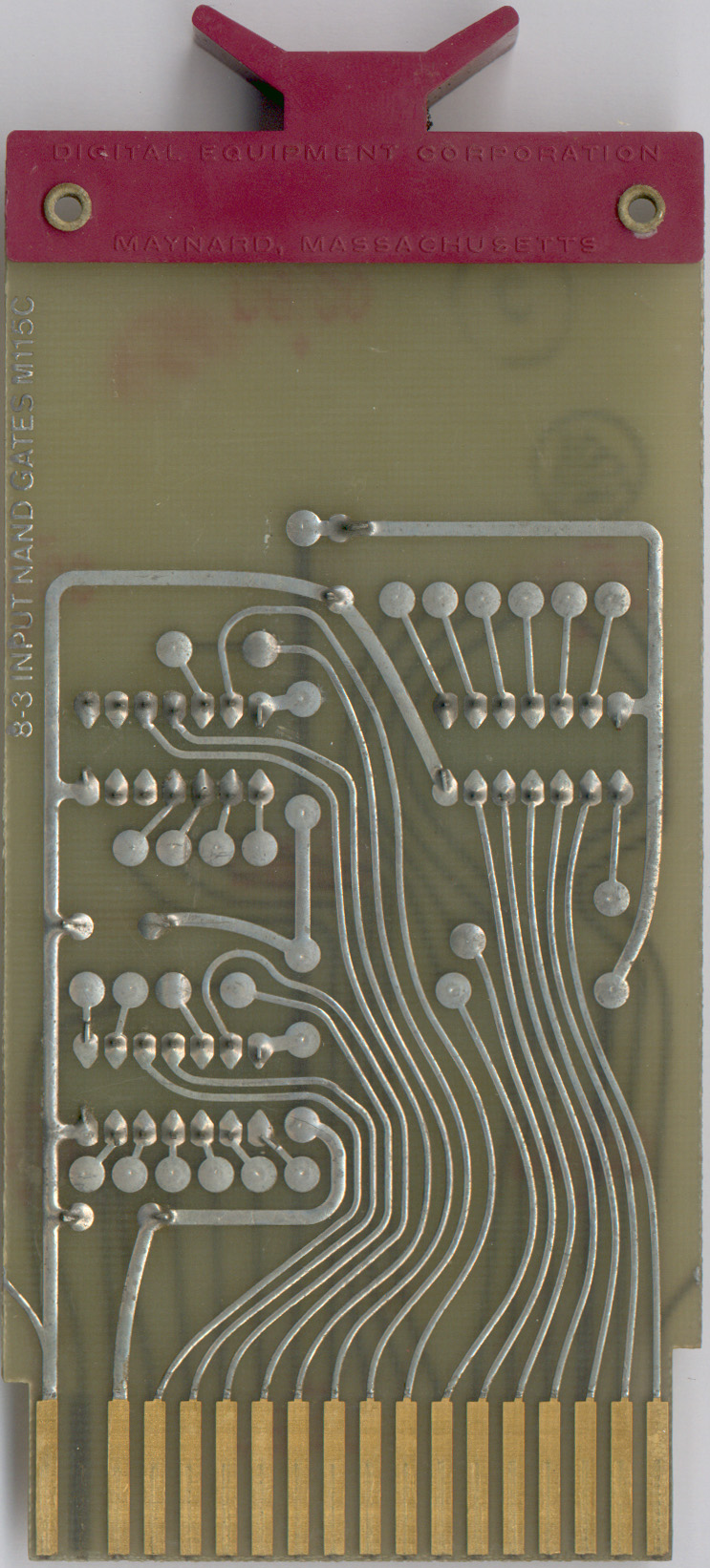

11 M115 Rev. D
Component Rev. C
Solder Rev. C 		M216 Rev. B Rev. C
Component Rev. B

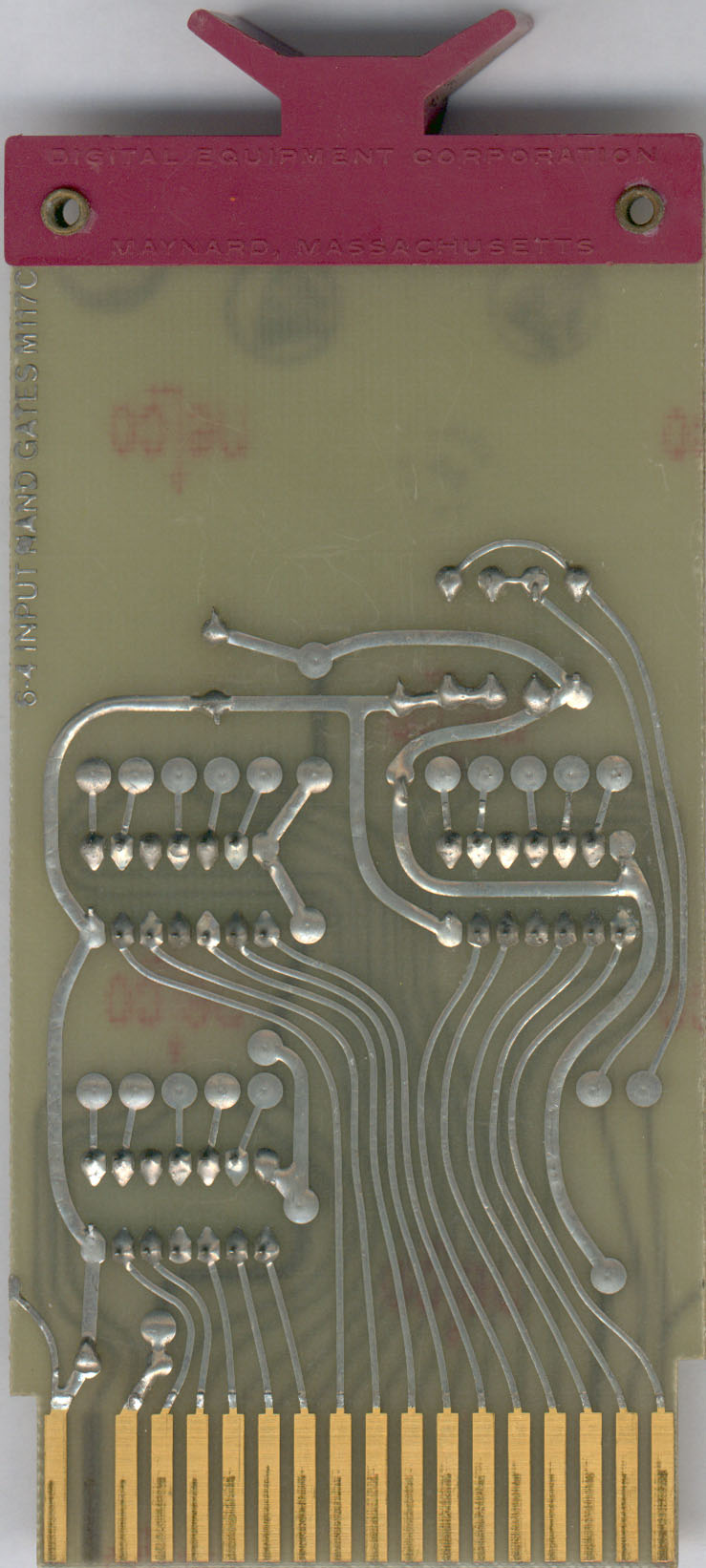

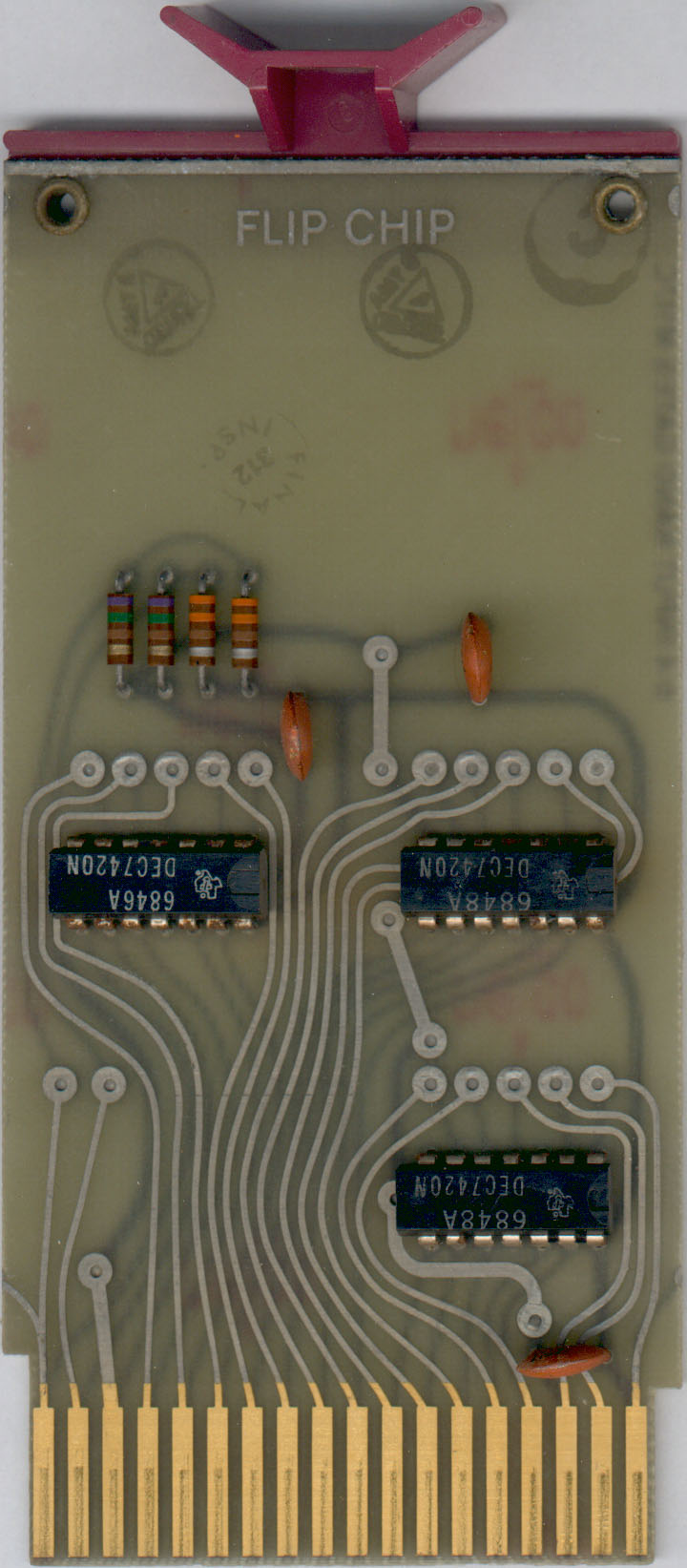

Solder Rev. B 		M117 Rev. E
Component Rev. C
Solder Rev. C 		-
12 M160 Rev. D
Component Rev. C
Solder Rev. C 		M111 Rev. A Rev. C
Component Rev. A
Solder Rev. A 		M115 Rev. D
Component Rev. C
Solder Rev. C 		M113 Rev. D
Component Rev. B Rev. C
Solder Rev. B Rev. C
13 M160 Rev. D
Component Rev. C
Solder Rev. C 		M113 Rev. D
Component Rev. B Rev. C
Solder Rev. B Rev. C 		M117 Rev. E
Component Rev. C
Solder Rev. C 		M111 Rev. A Rev. C
Component Rev. A
Solder Rev. A
14 M115 Rev. D
Component Rev. C
Solder Rev. C 		M119 Rev. C
Component Rev. X
Solder Rev. X 		M113 Rev. D
Component Rev. B Rev. C
Solder Rev. B Rev. C 		M310 Rev. B Rev. C
Component Rev. A
Solder Rev. A
15 - - M113 Rev. D
Component Rev. B Rev. C
Solder Rev. B Rev. C 		M310 Rev. B Rev. C
Component Rev. A
Solder Rev. A
16 - - - M216 Rev. B Rev. C
Component Rev. B
Solder Rev. B

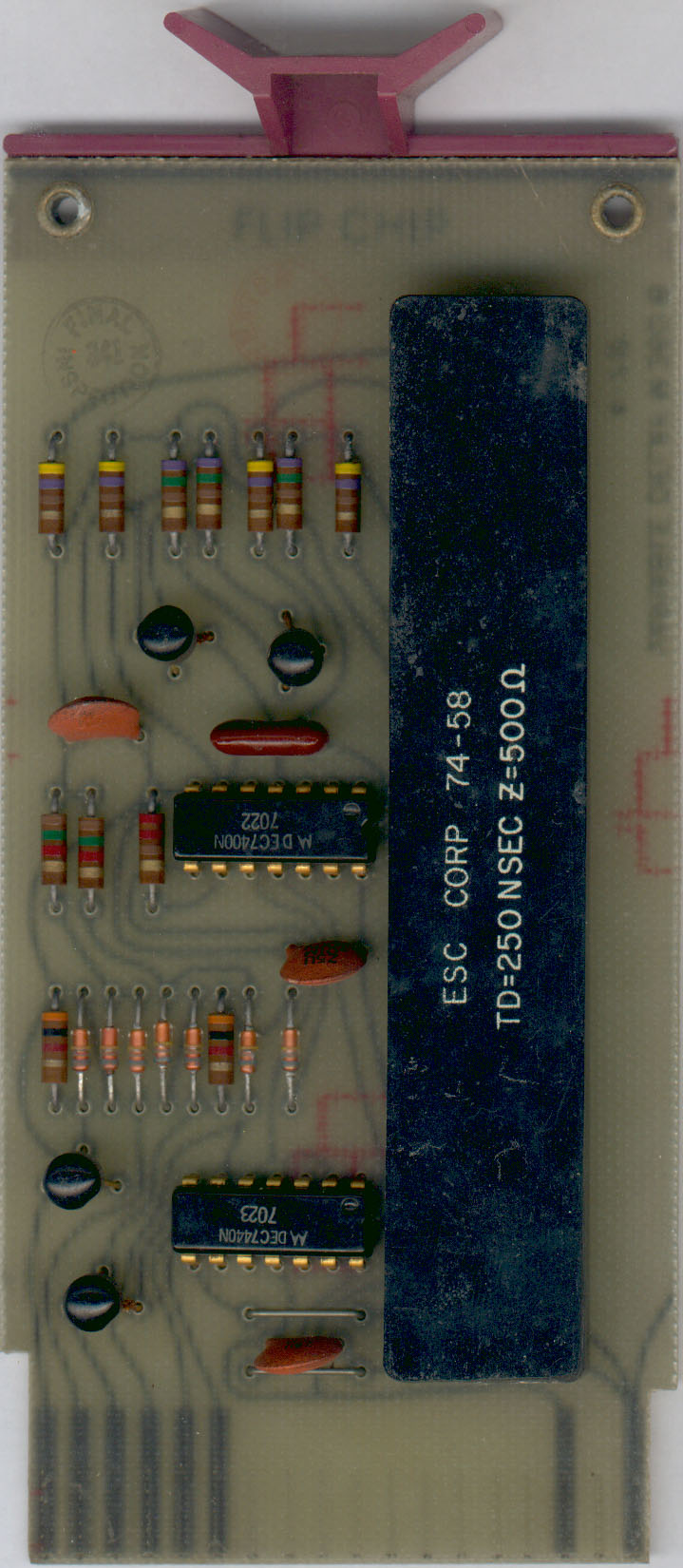

17 - - M360 Rev. B
Component Rev. B
Solder Rev. B 		M617 Rev. A Rev. C
Component Rev. C
Solder Rev. C

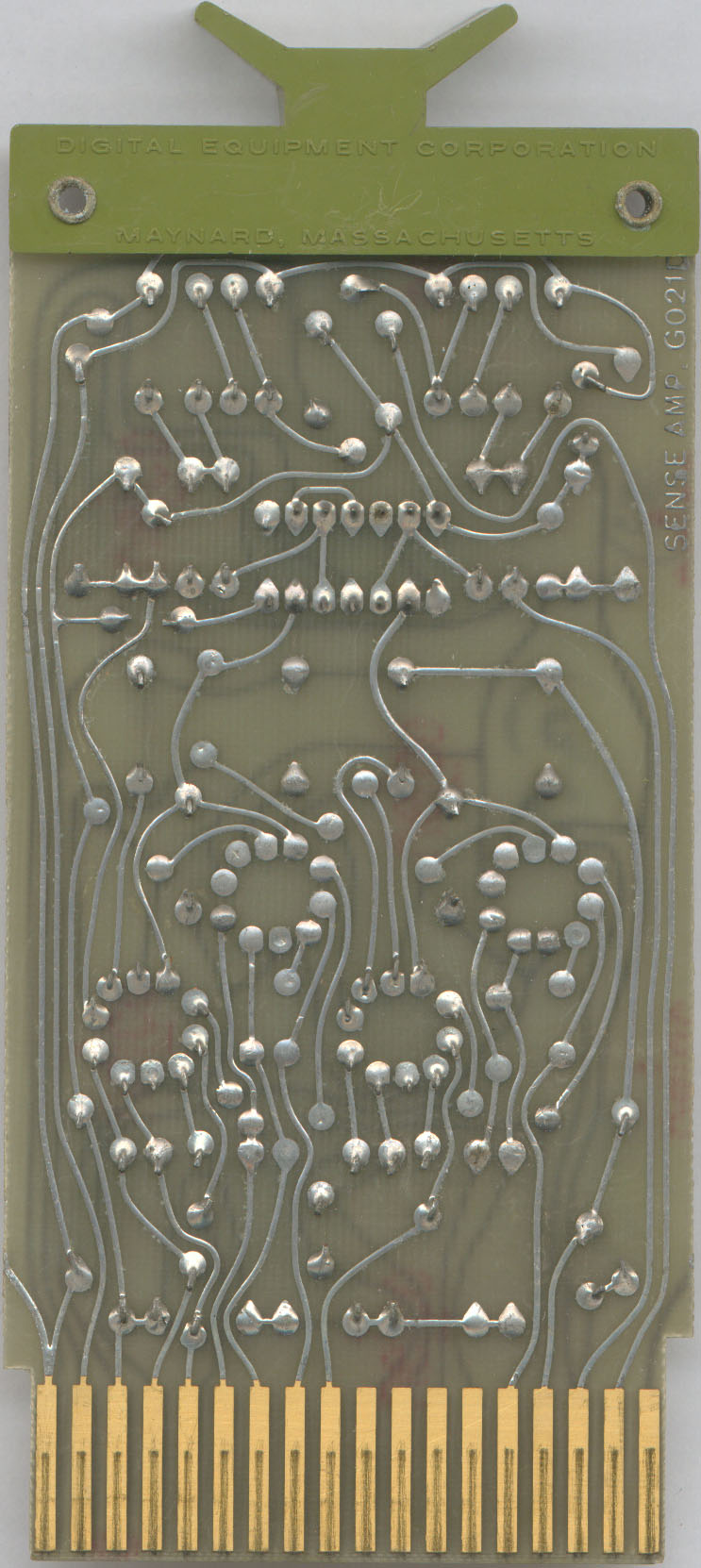

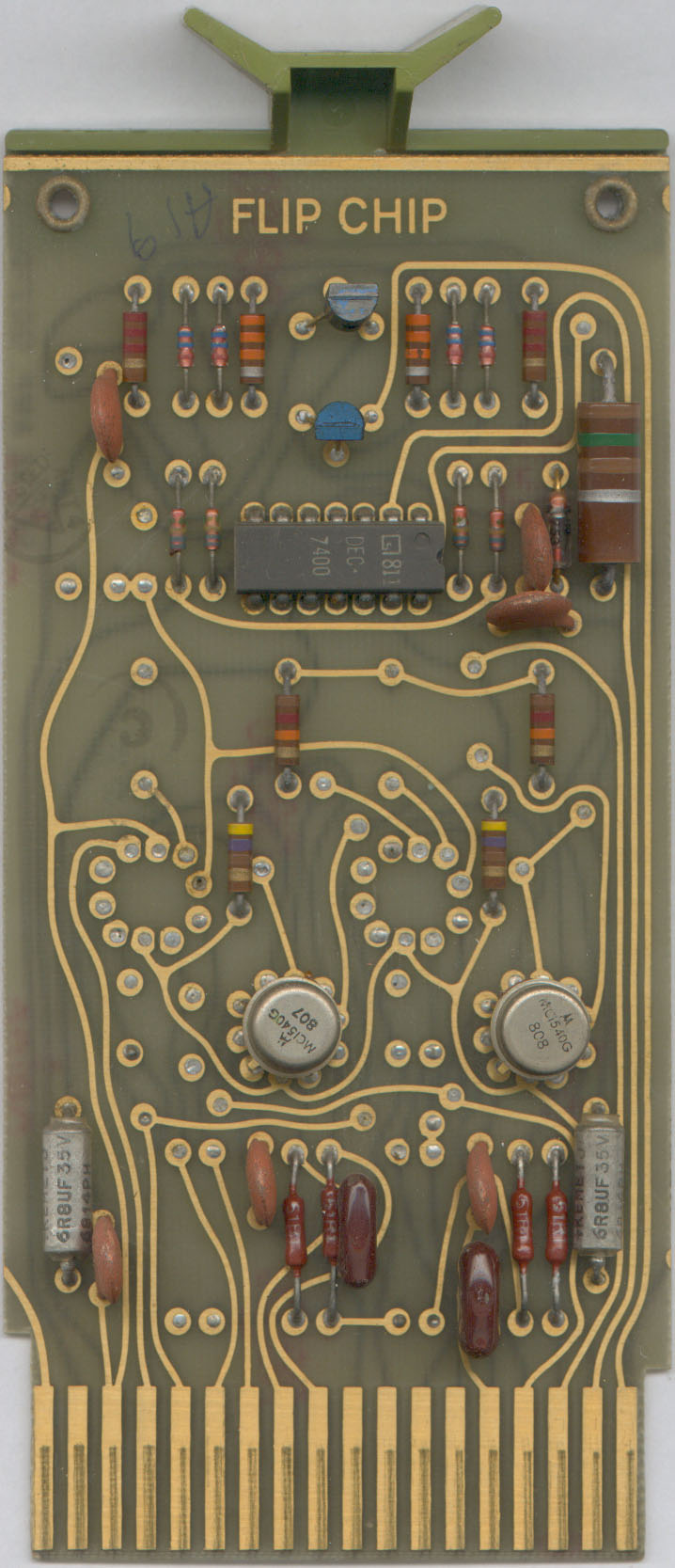

18 G020 Rev. E Rev. H
Component Rev. G021D
Solder Rev. G021D 		G020 Rev. H
Component Rev. G021D

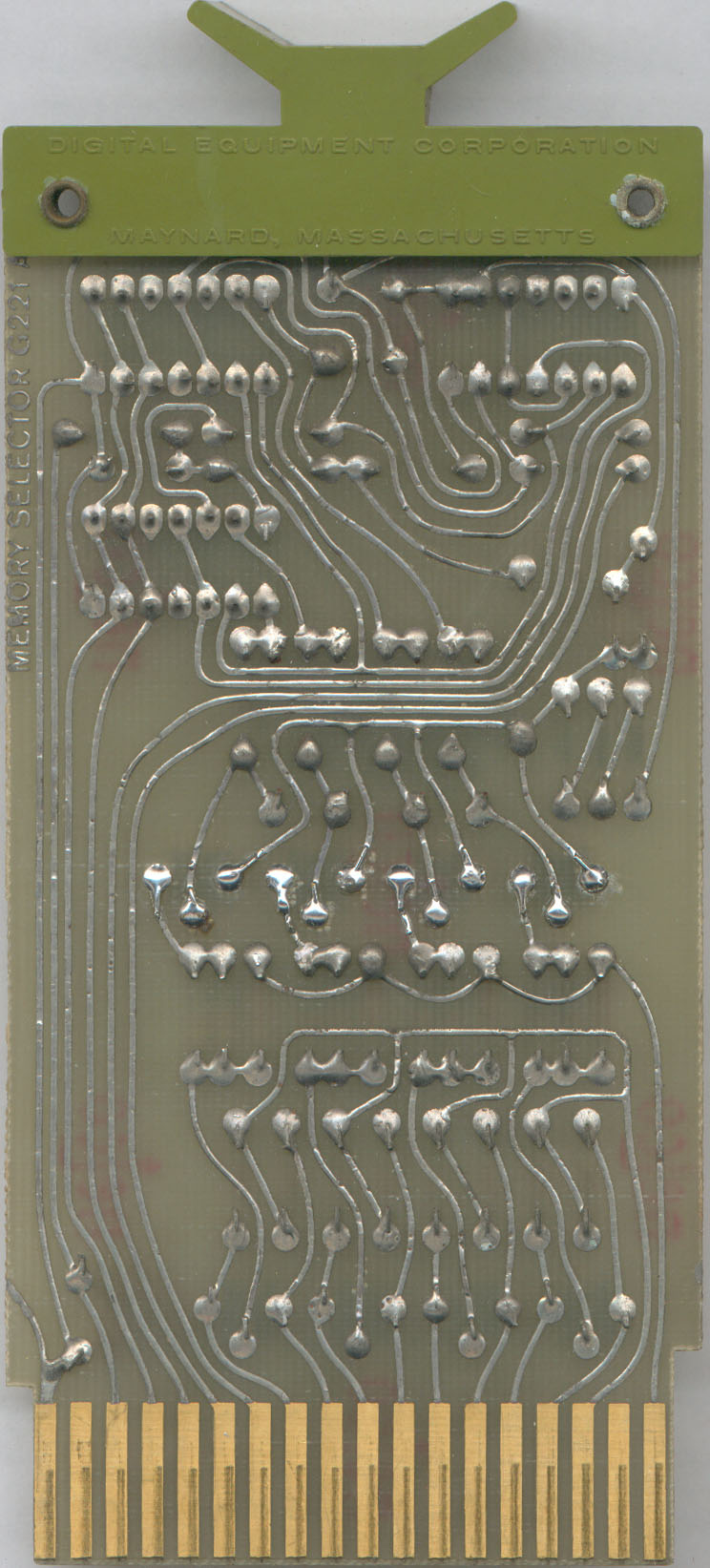

Solder Rev. G021D 		G221 Rev. A Rev. B
Component Rev. A Rev. B
Solder Rev. A Rev. B 		G221 Rev. A Rev. B
Component Rev. A Rev. B
Solder Rev. A Rev. B
19 G020 Rev. H
Component Rev. G021D
Solder Rev. G021D 		G020 Rev. H
Component Rev. G021D
Solder Rev. G021D 		G221 Rev. A Rev. B
Component Rev. A Rev. B
Solder Rev. A Rev. B 		G221 Rev. A Rev. B
Component Rev. A Rev. B
Solder Rev. A Rev. B
20 G020 Rev. H
Component Rev. G021D
Solder Rev. G021D 		G020 Rev. H
Component Rev. G021D
Solder Rev. G021D 		G610
21 W825 Memory Stack
22 W825 G611

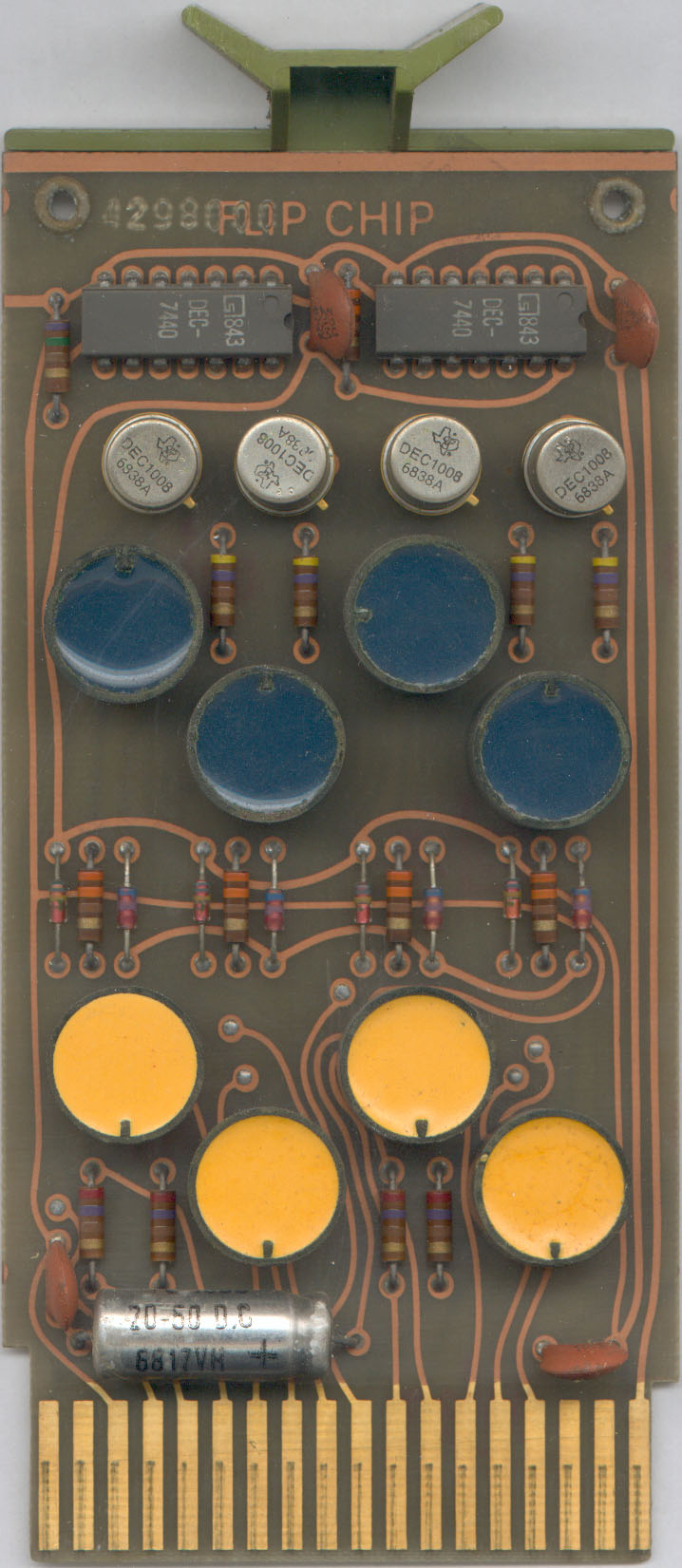

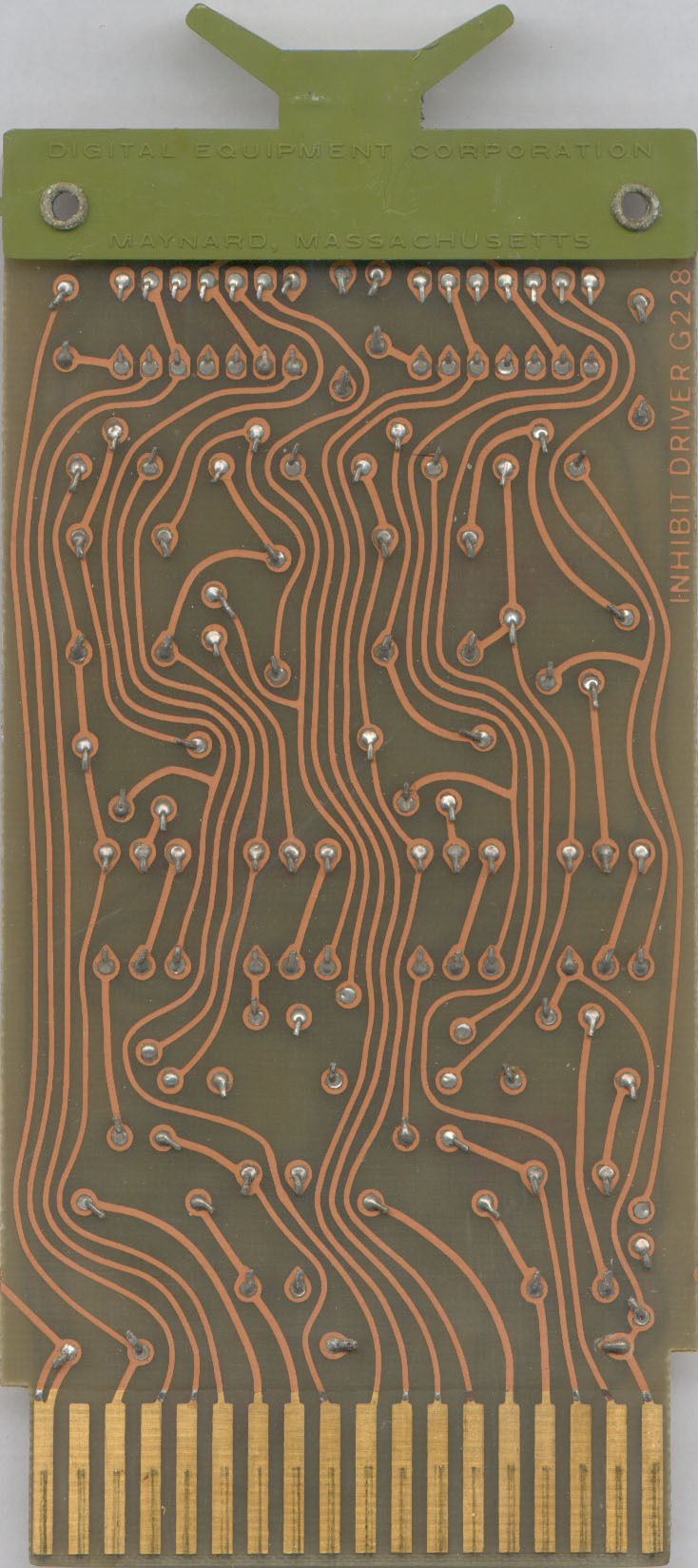

23 G228 Rev. H
Component Rev. X
Solder Rev. X 		G228 Rev. H
Component Rev. X
Solder Rev. X 		G221 Rev. A Rev. B
Component Rev. A Rev. B
Solder Rev. A Rev. B 		G221 Rev. A Rev. B
Component Rev. A Rev. B
Solder Rev. A Rev. B
24 - G228 Rev. H
Component Rev. X
Solder Rev. X 		G221 Rev. A Rev. B
Component Rev. A Rev. B
Solder Rev. A Rev. B 		G221 Rev. A Rev. B
Component Rev. A Rev. B
Solder Rev. A Rev. B

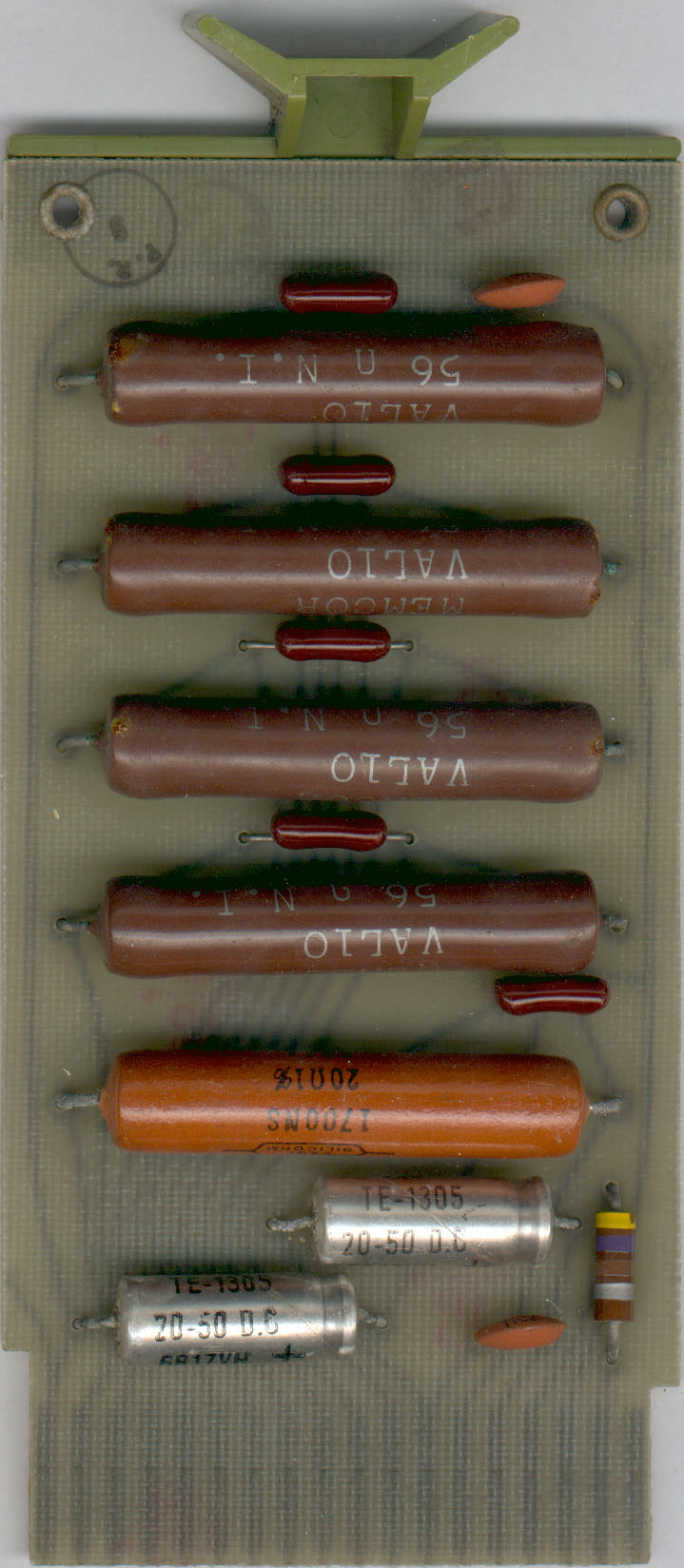

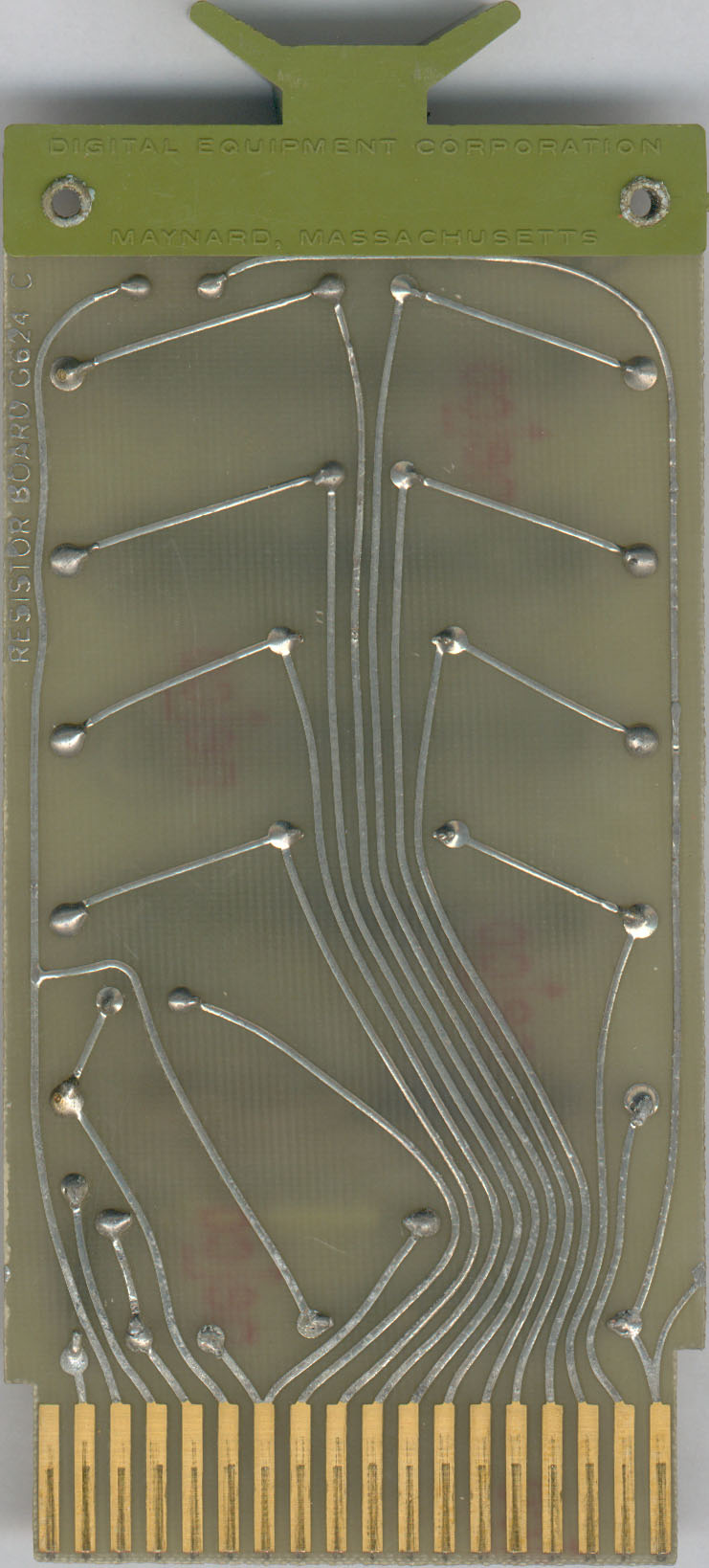

25 G624 Rev. C
Component Rev. C
Solder Rev. C 		G624 Rev. C
Component Rev. C
Solder Rev. C 		G228 Rev. H
Component Rev. X
Solder Rev. X 		G228 Rev. H
Component Rev. X
Solder Rev. X
26 G624 Rev. C
Component Rev. C
Solder Rev. C 		G624 Rev. C
Component Rev. C

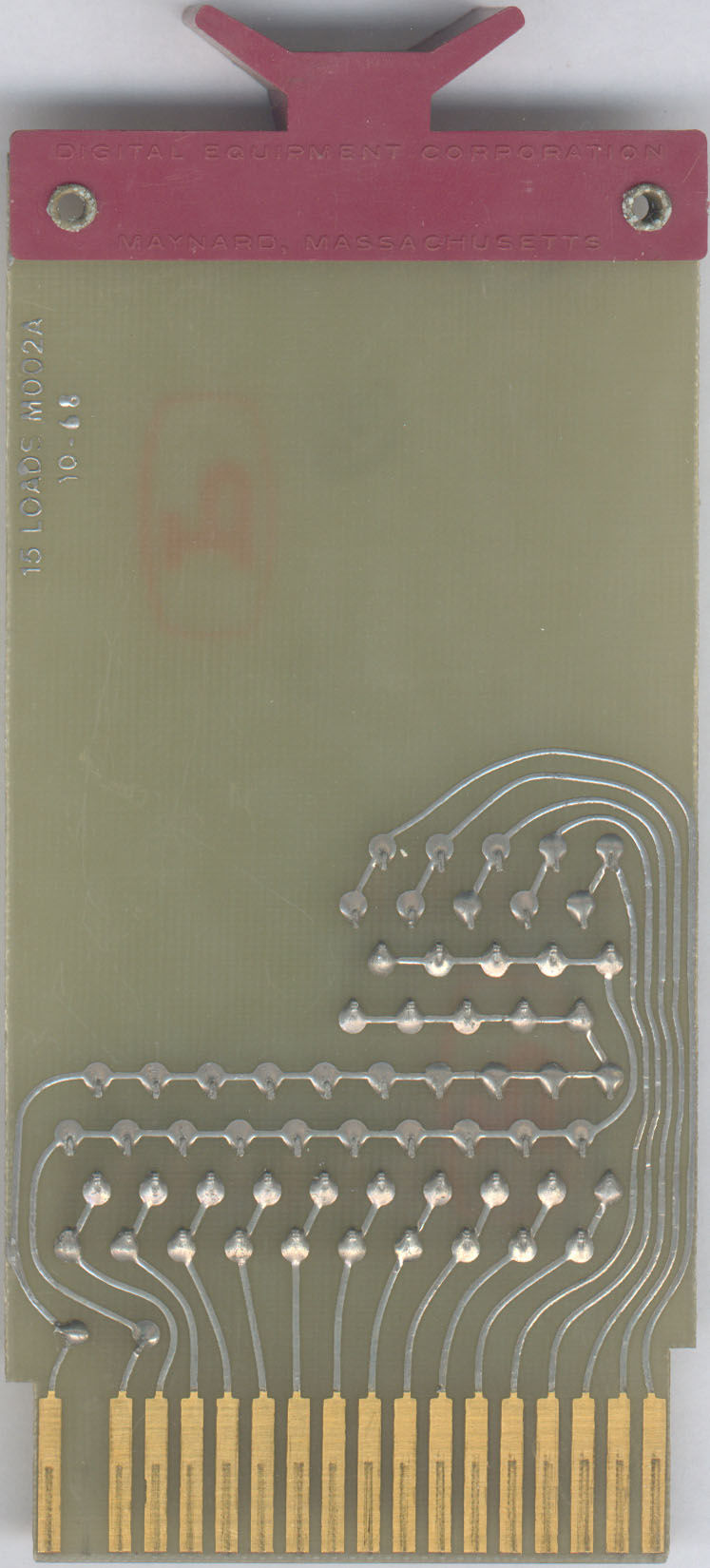

Solder Rev. C 		M002 Rev. A
Component Rev. A
Solder Rev. A 		-

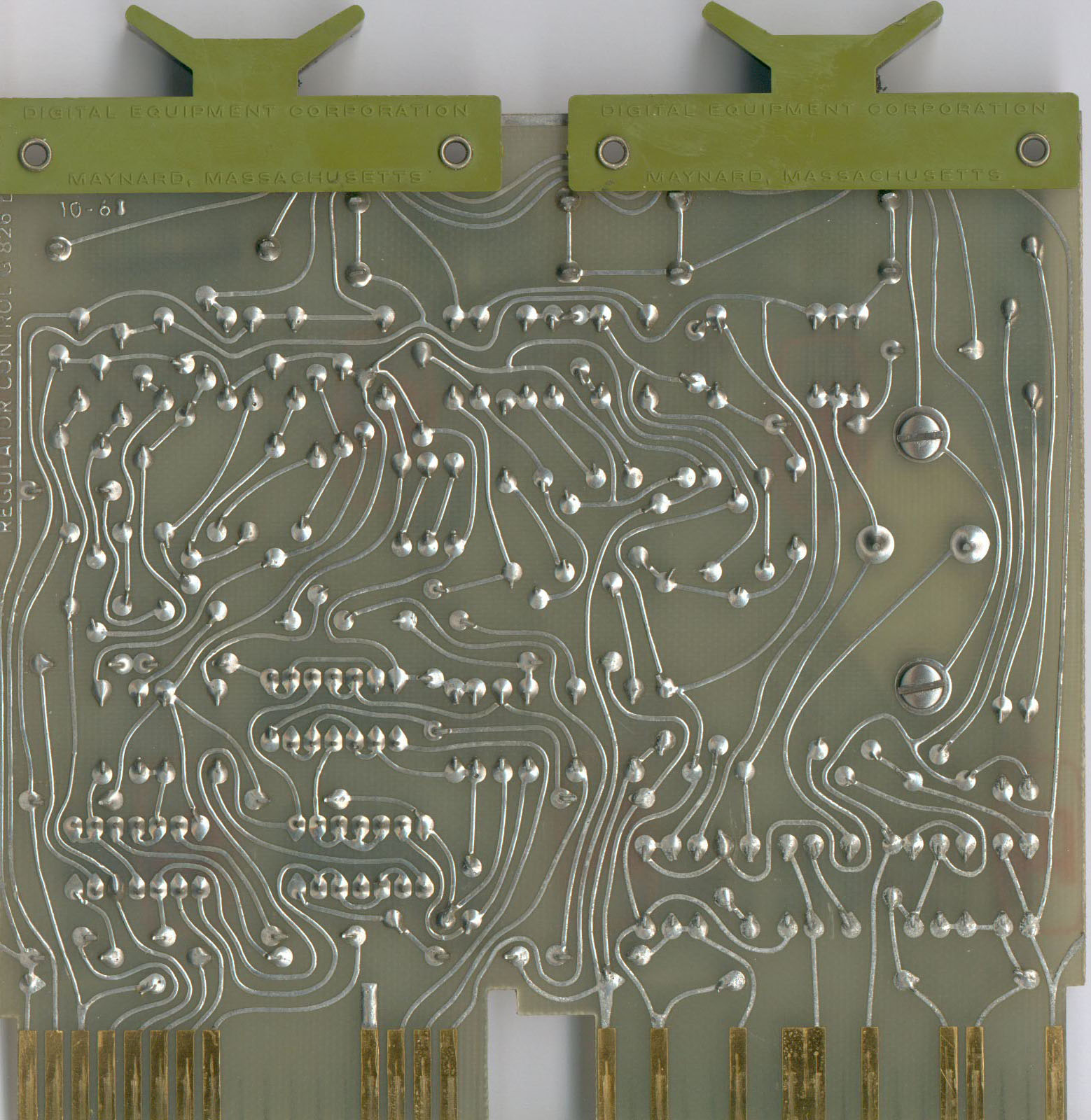

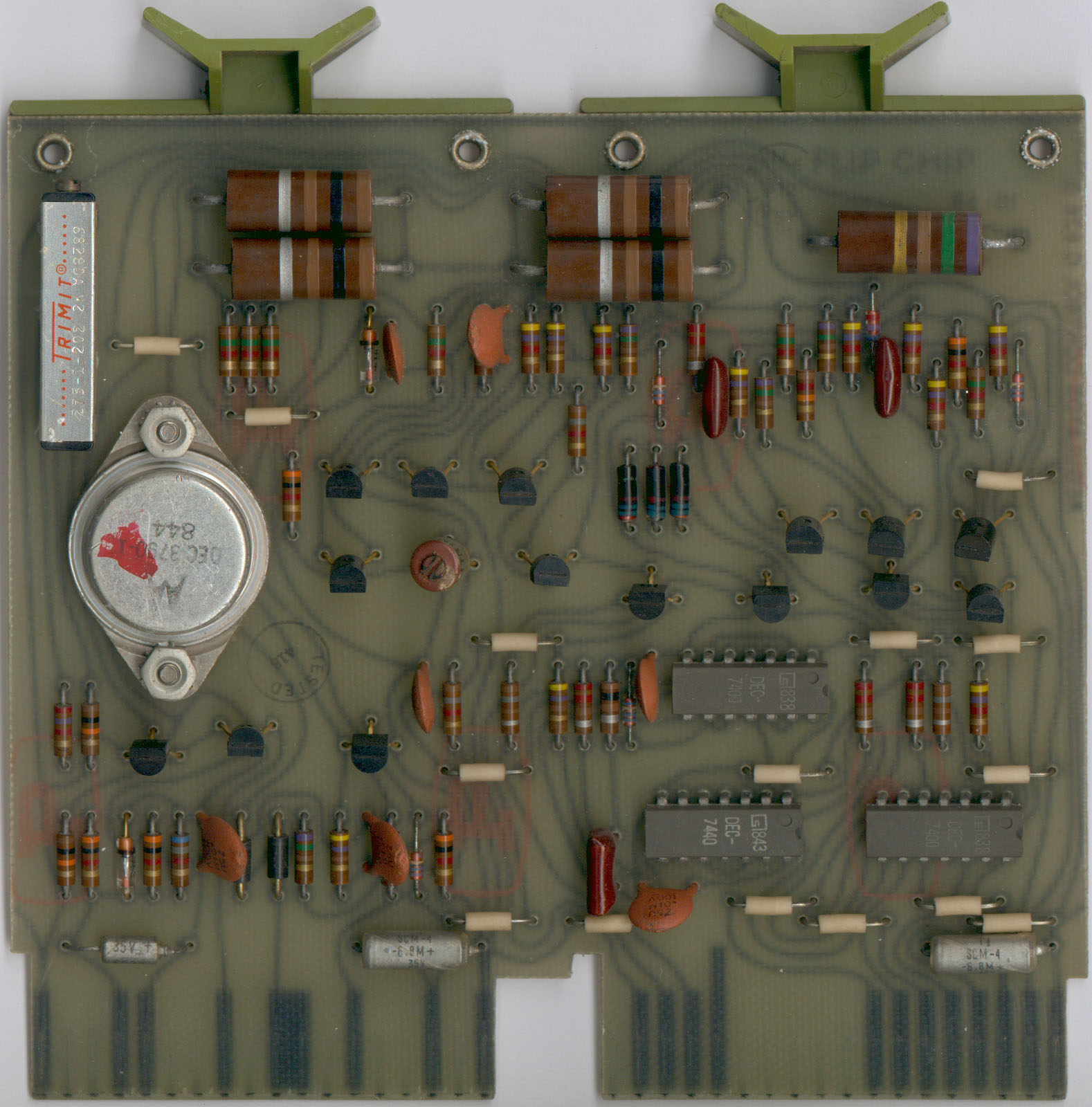

27 G826 Rev. D Rev. K
Component Rev. D

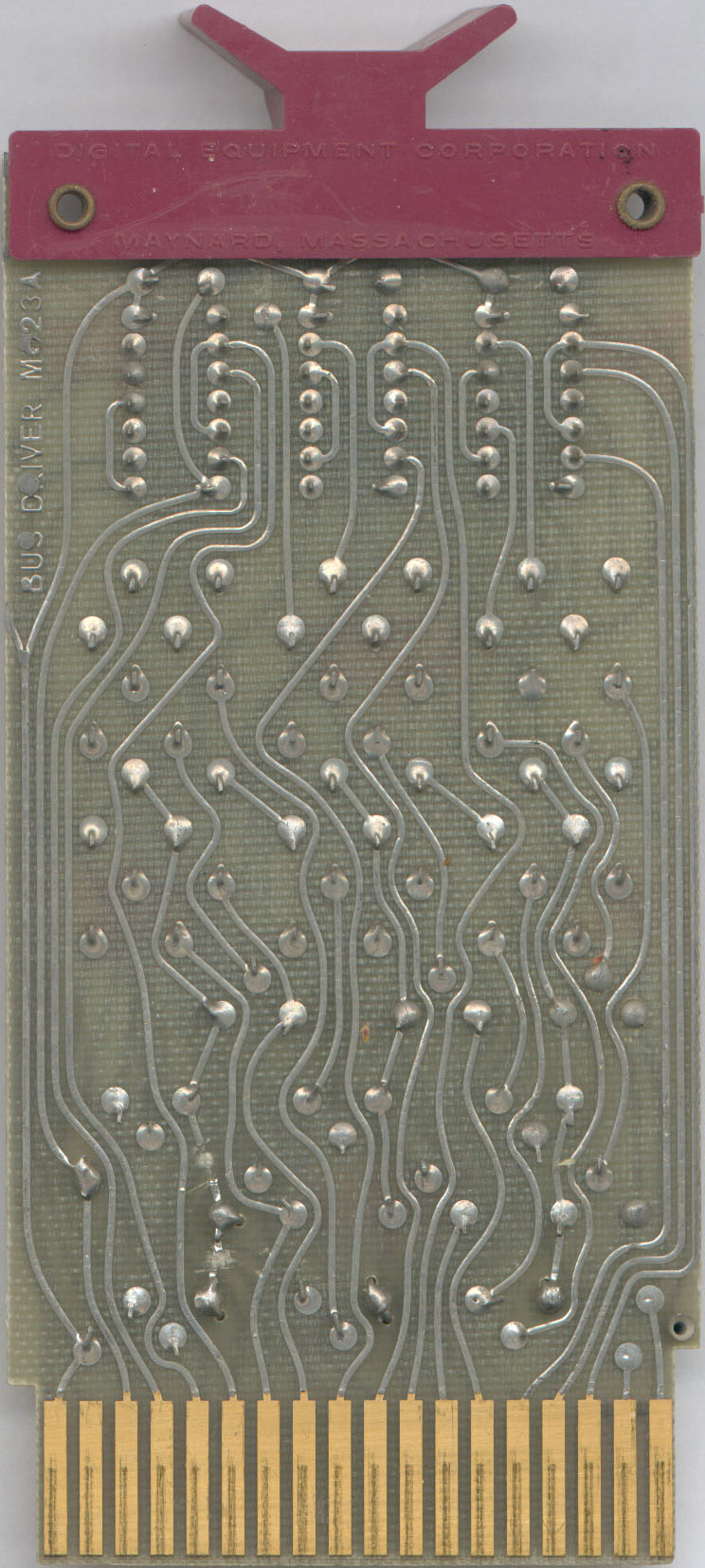

Solder Rev. D 		M623 Rev. A Rev. DE
Component Rev. A Rev. A Mod.
Solder Rev. A Rev. A Mod. 		M623 Rev. A Rev. DE
Component Rev. A Rev. A Mod.
Solder Rev. A Rev. A Mod.
28 G785 Rev. D M115 Rev. D
Component Rev. C
Solder Rev. C 		M623 Rev. A Rev. DE
Component Rev. A Rev. A Mod.
Solder Rev. A Rev. A Mod.

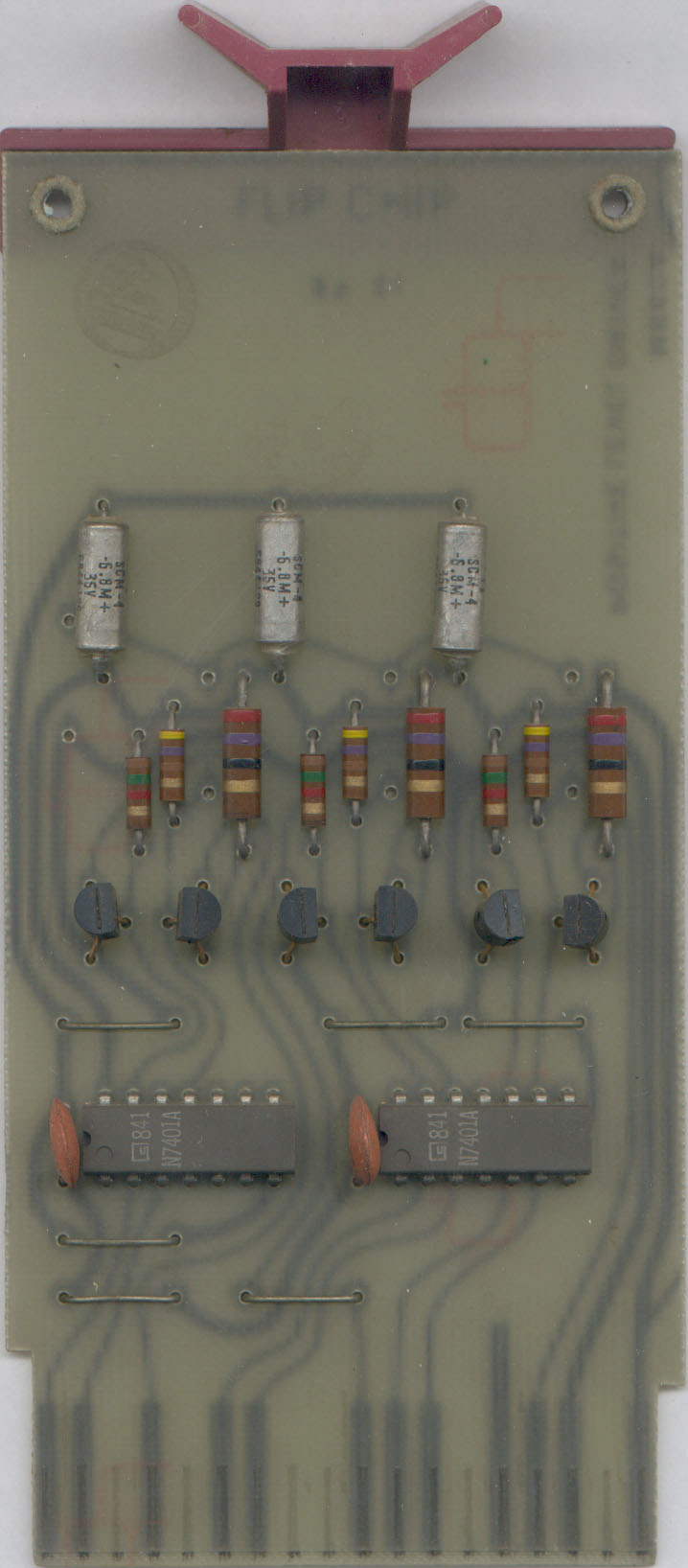

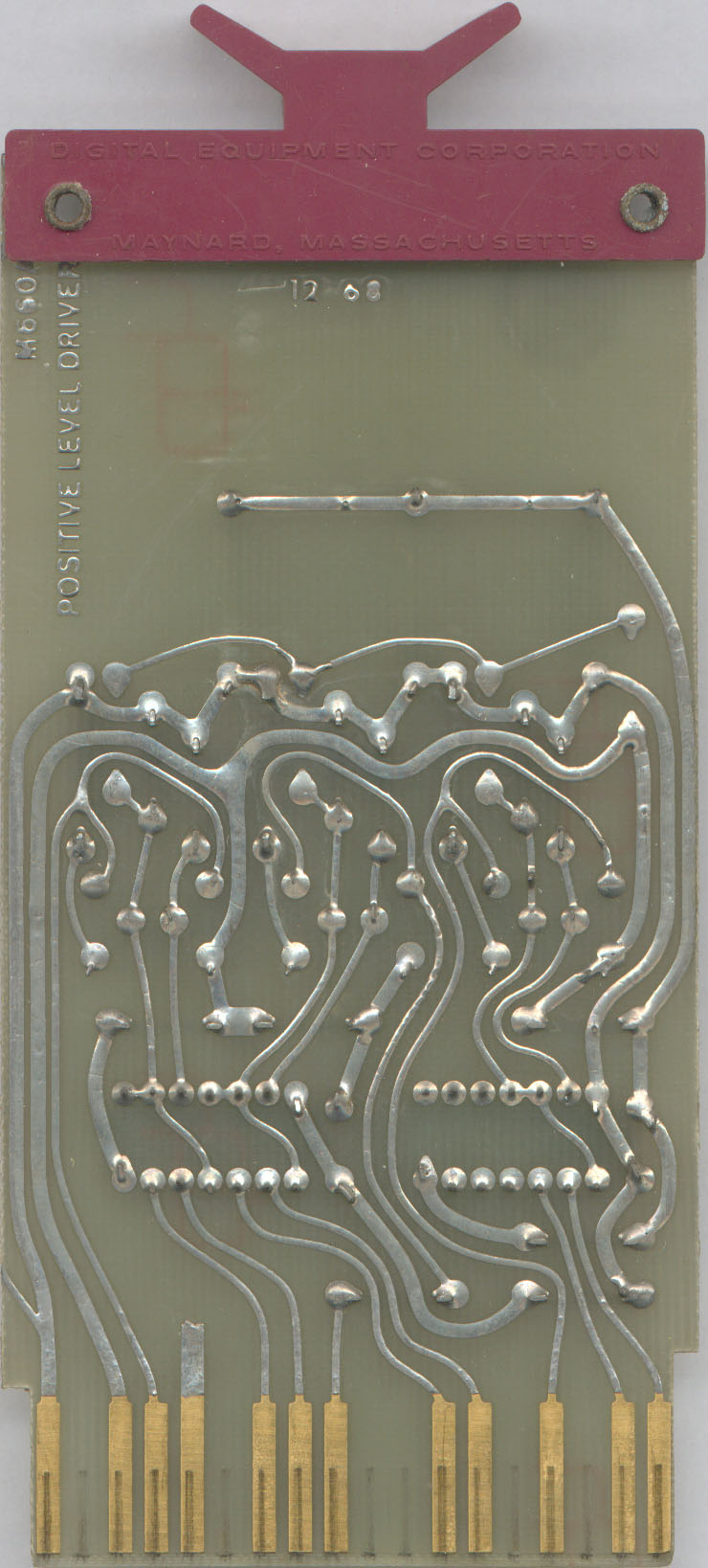

29 - - M660 Rev. A Rev. B
Component Rev. A

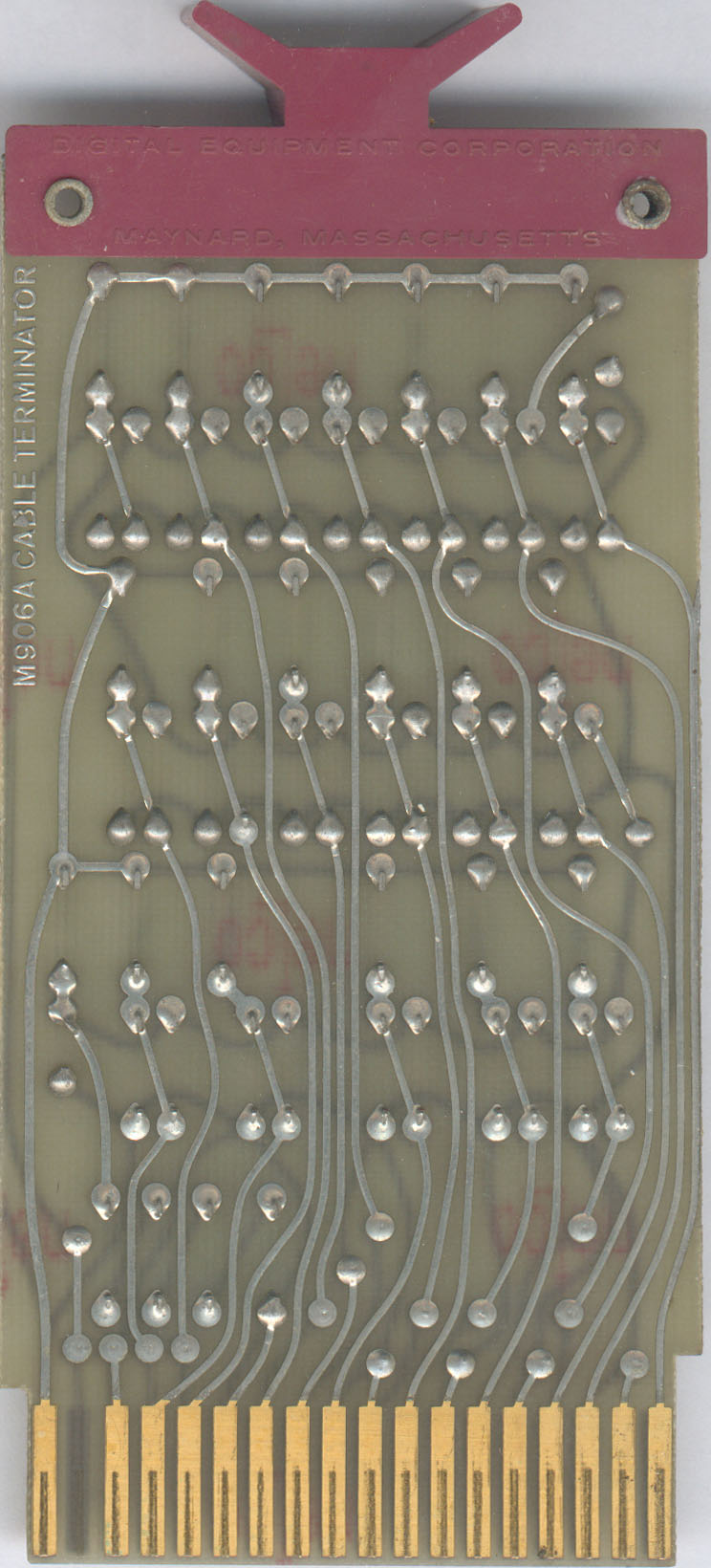

Solder Rev. A 		M906 Rev. AB
Component Rev. A
Solder Rev. A
30 - - M660 Rev. A Rev. B
Component Rev. A
Solder Rev. A 		M906 Rev. AB
Component Rev. A
Solder Rev. A

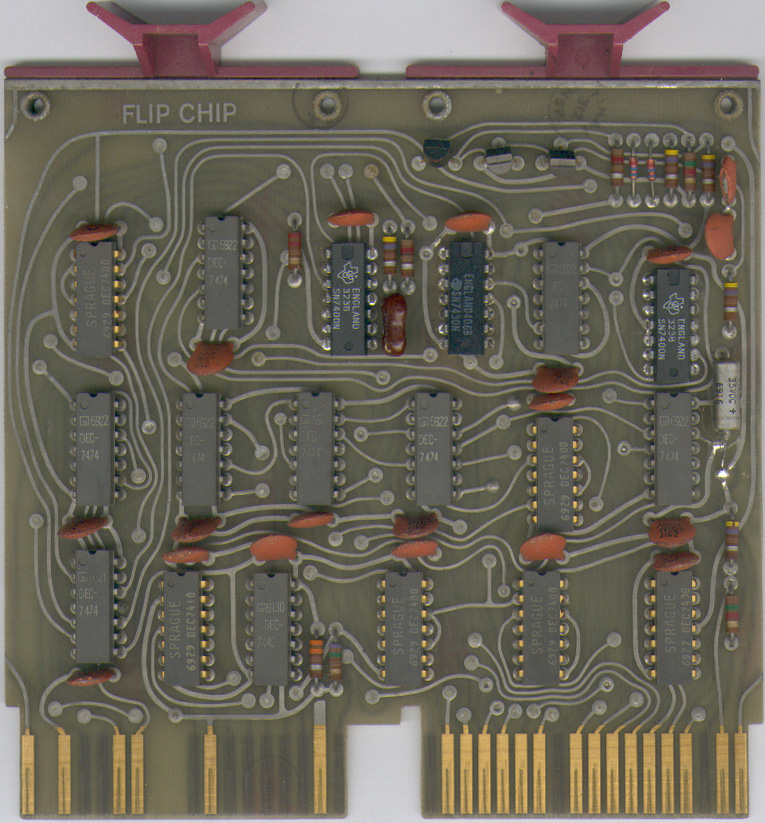

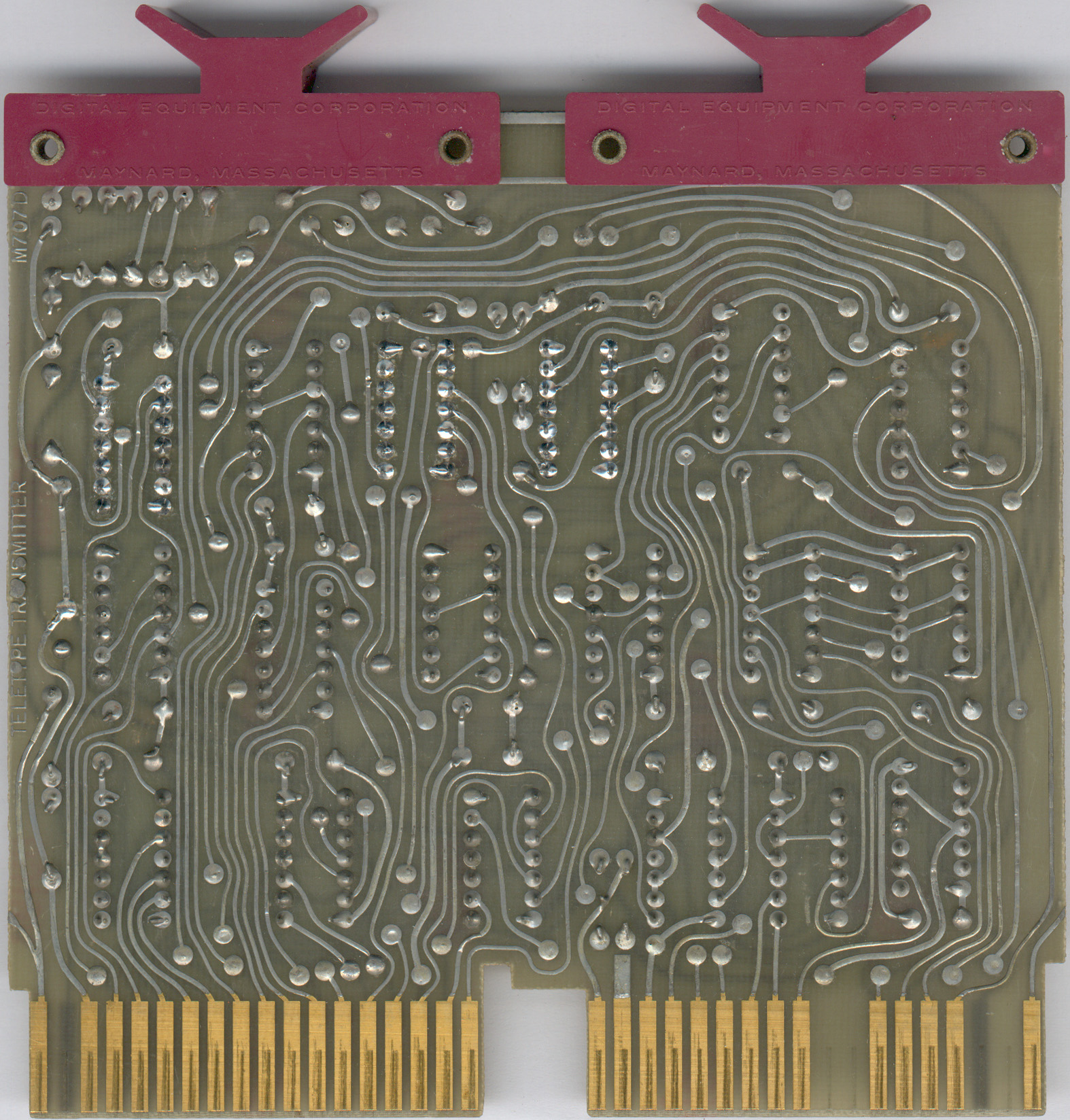

31 - - M707 Rev. C Rev. D
Component Rev. D
Solder Rev. D

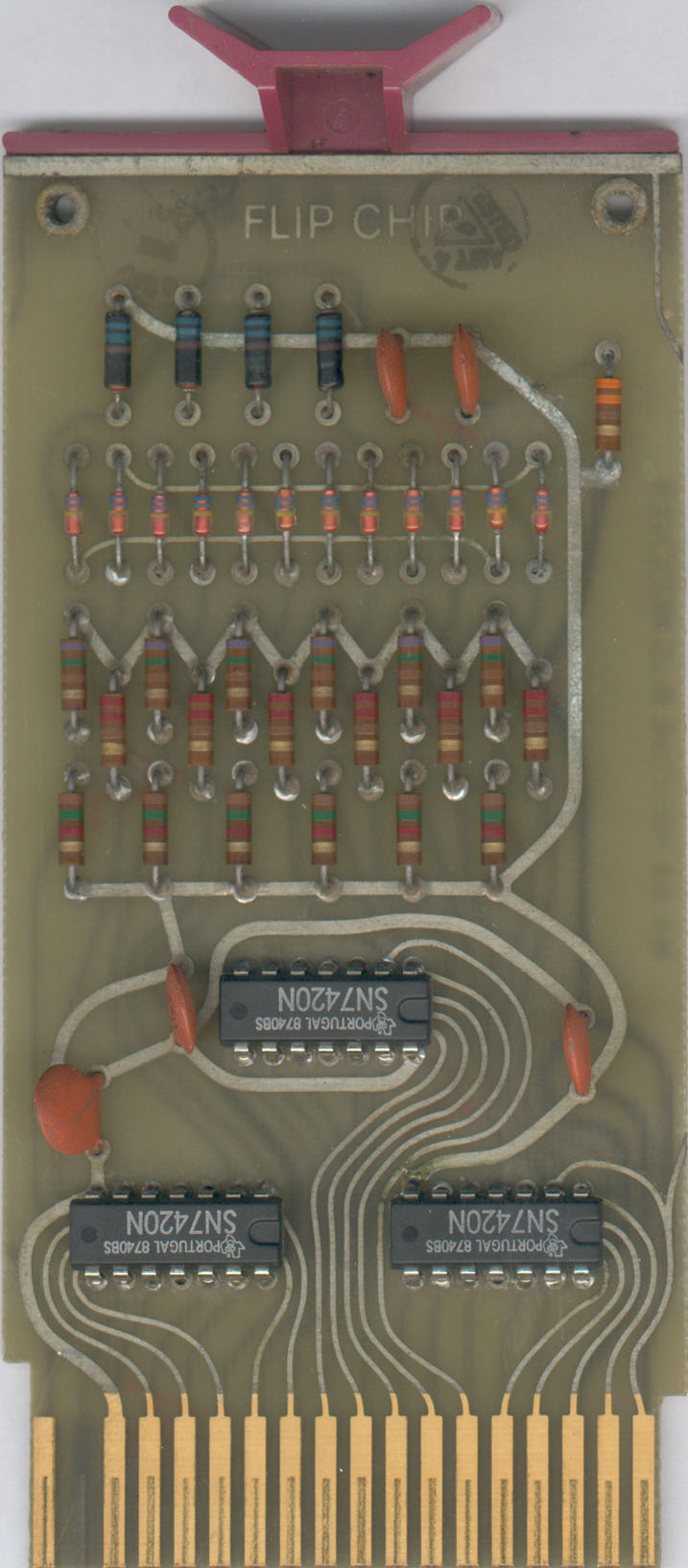

32 M516 Rev. A
Component Rev. A
Solder Rev. A 		M906 Rev. AB
Component Rev. A

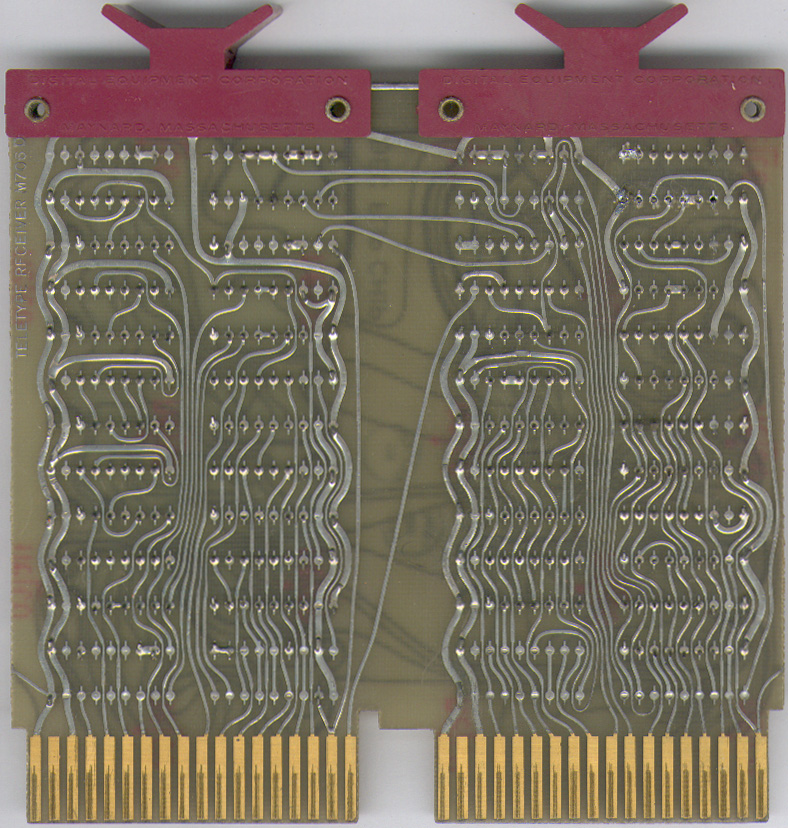

Solder Rev. A 		M706 Rev. D Rev. K
Component Rev. D
Solder Rev. D
33 M516 Rev. A
Component Rev. A

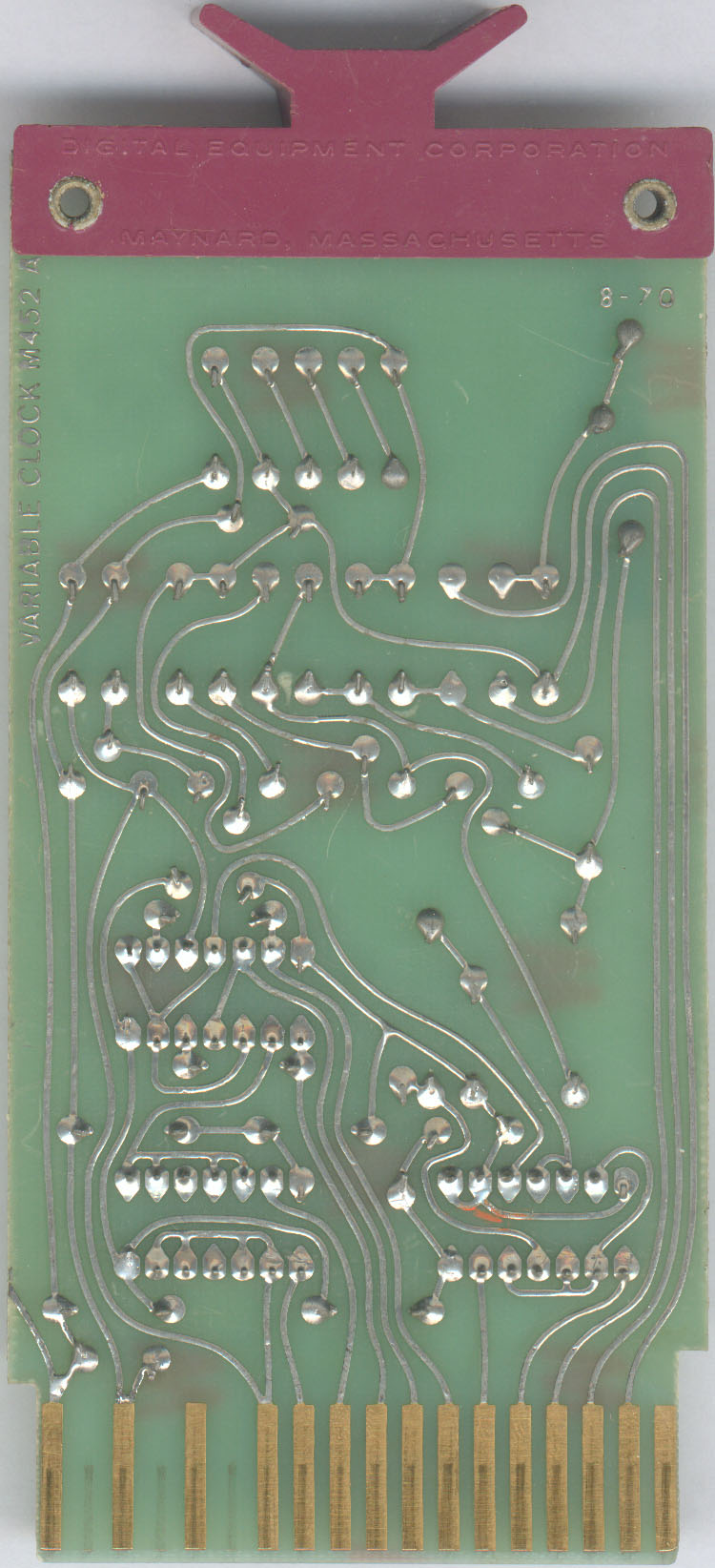

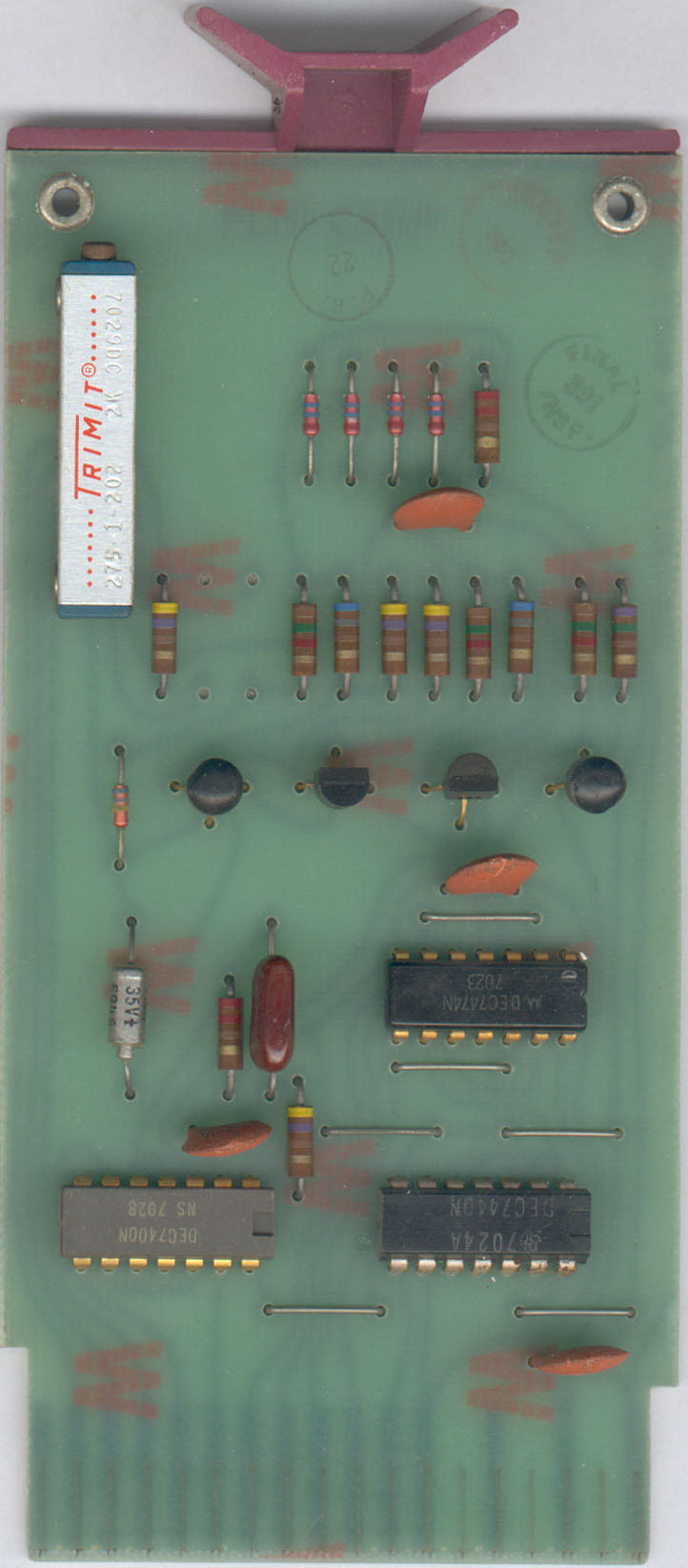

Solder Rev. A 		- M452 Rev. A
Component Rev. A

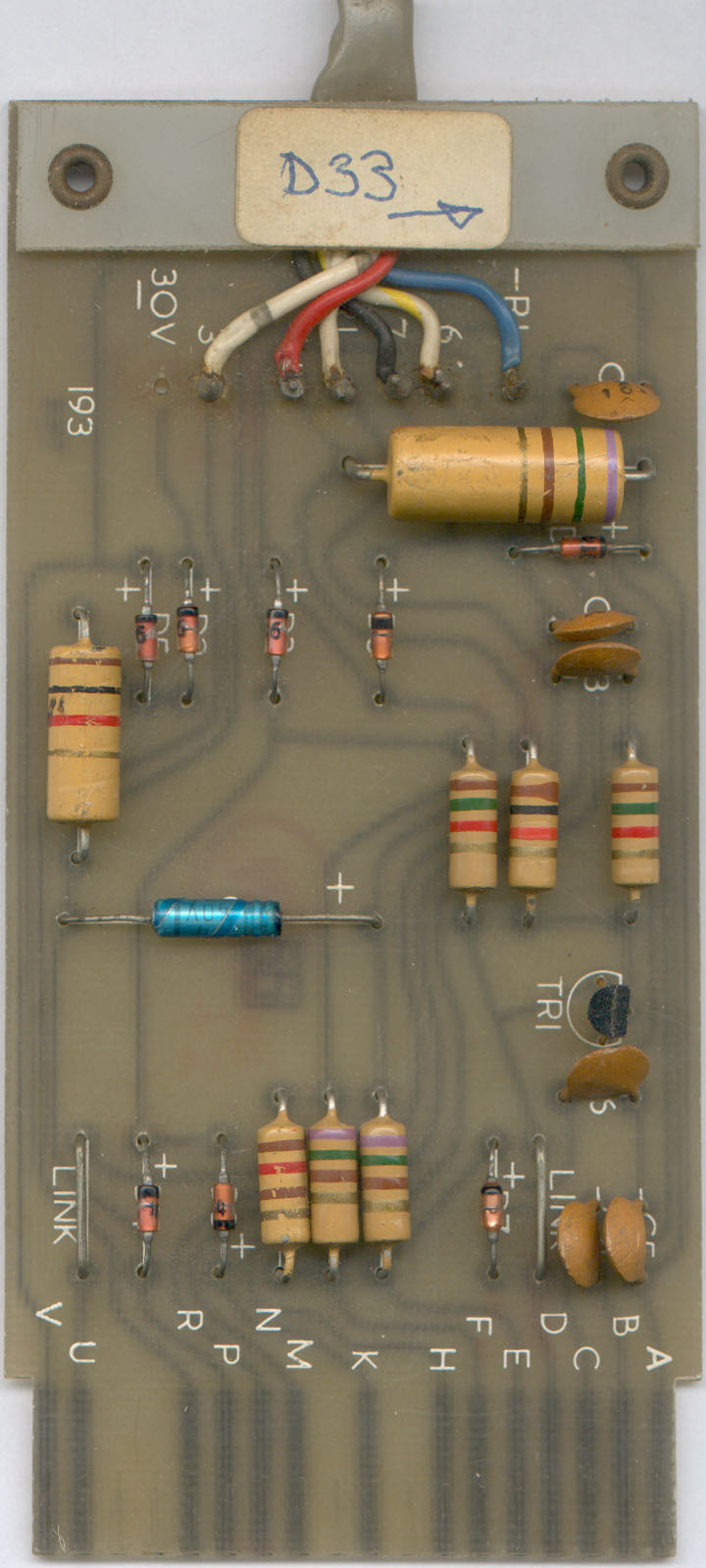

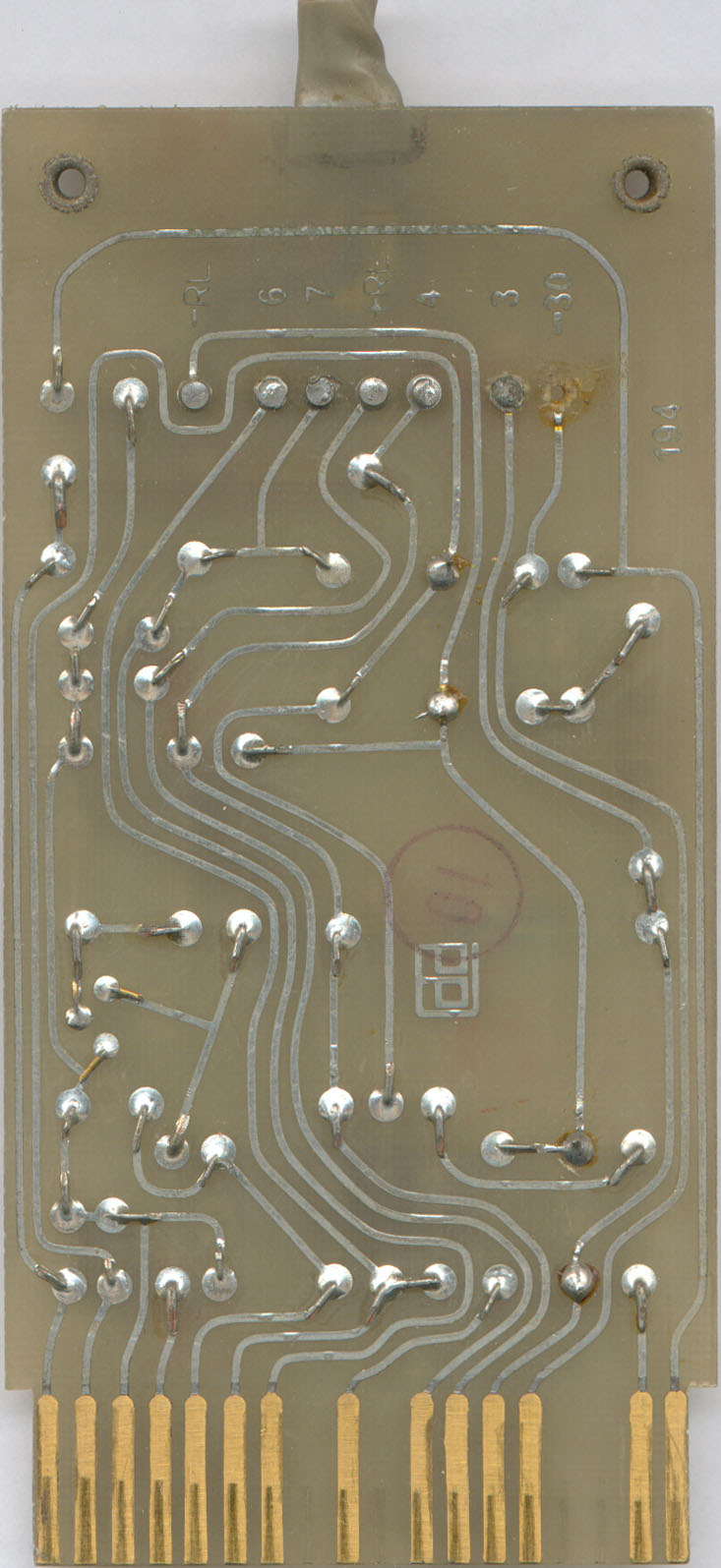

Solder Rev. A 		W076 TTY-cable
Component
Solder
34 - - - -
35 M111 Rev. A Rev. C
Component Rev. A
Solder Rev. A 		- - -
36 - - - -
